Industrial rotators

Select a category

Rotators Industrial rotators Hydraulic Manifolds Links and Swing Dampers

Industrial rotator type

Max. axial load dynamic

Max radial load

Deflection

Torque

Industry

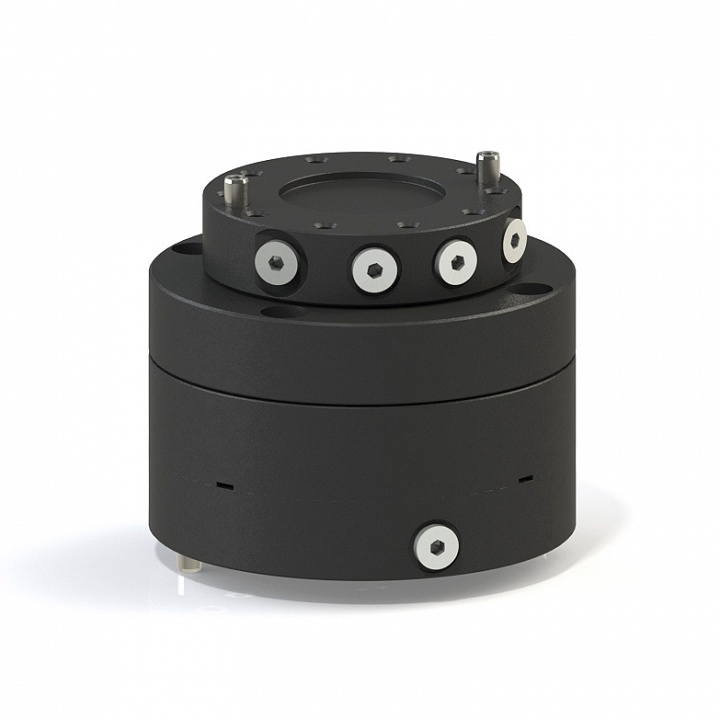

CPR5

CPR5

Max. axial load static: ±100 kN
Max. axial load dynamic: ±50 kN
Max radial load: 36 kN
Deflection: 10 kNm
Torque: 1350 Nm
Weight: 46 kg
Datasheet PDF

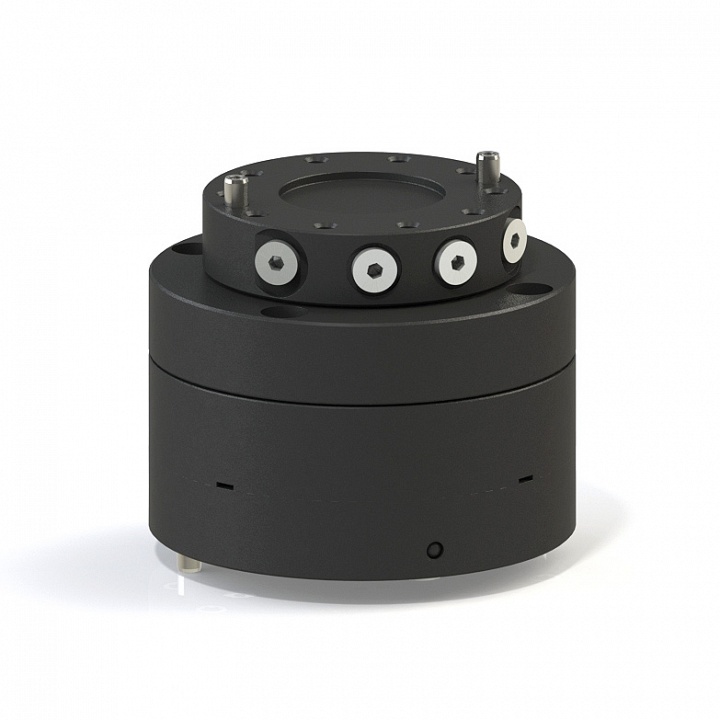

CPR5-01

CPR5-01

Max. axial load static: ±100 kN
Max. axial load dynamic: ±50 kN
Max radial load: 36 kN
Deflection: 10 kNm
Torque: 1350 Nm
Weight: 46 kg
Datasheet PDF

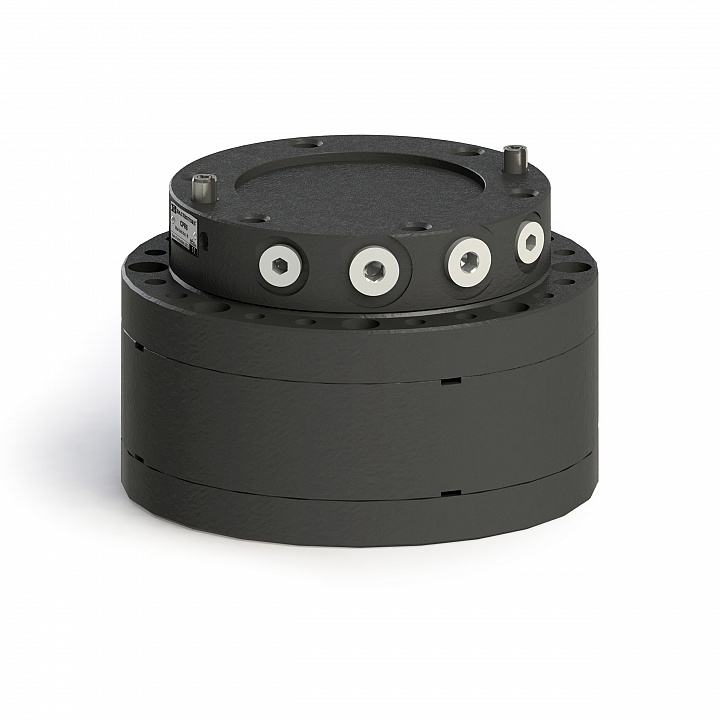

CPR8

CPR8

Max. axial load static: ±330 kN
Max. axial load dynamic: ±80 kN
Max radial load: 60 kN
Deflection: 24 kNm
Torque: 3000 Nm
Weight: 92 kg
Datasheet PDF

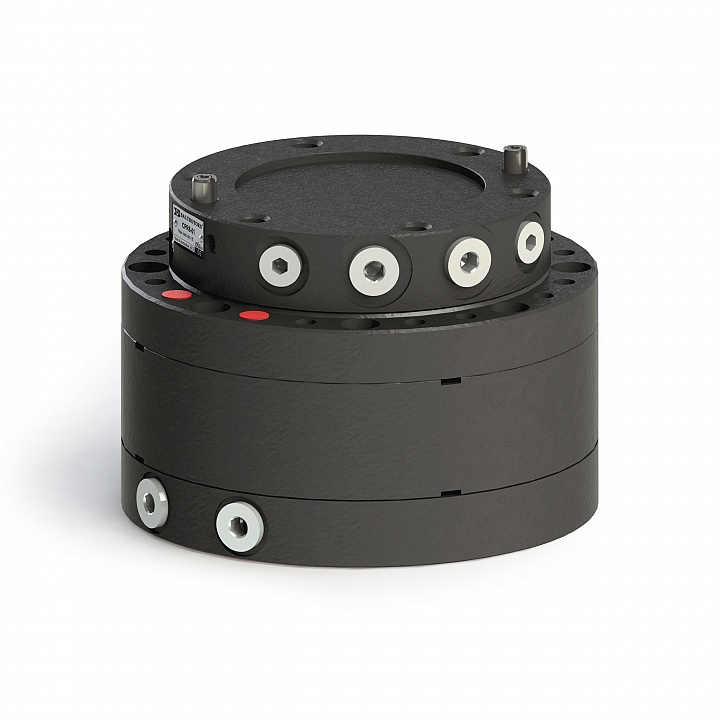

CPR8-01

CPR8-01

Max. axial load static: ±330 kN
Max. axial load dynamic: ±80 kN
Max radial load: 60 kN
Deflection: 24 kNm
Torque: 3000 Nm
Weight: 99 kg
Datasheet PDF

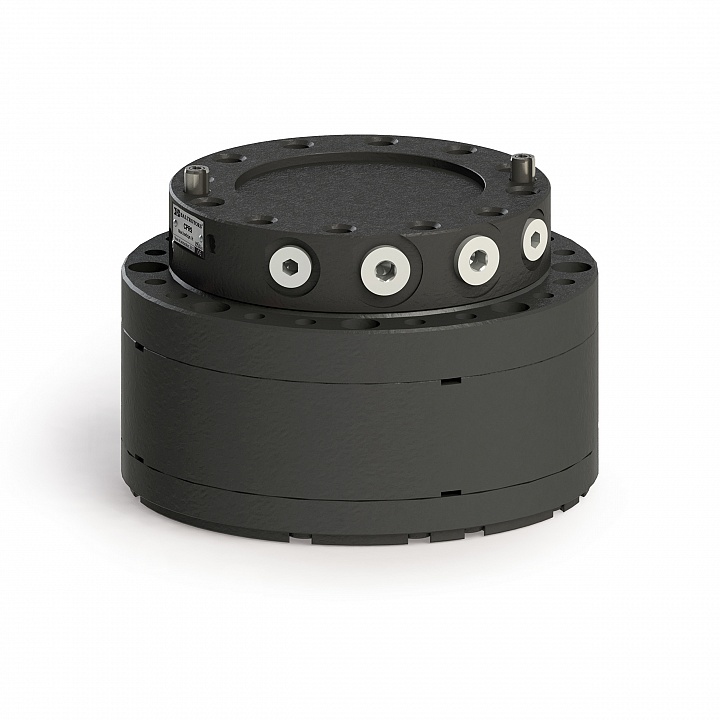

CPR9

CPR9

Max. axial load static: ±330 kN
Max. axial load dynamic: ±90 kN
Max radial load: 70 kN
Deflection: 24 kNm
Torque: 3000 Nm
Weight: 91 kg
Datasheet PDF

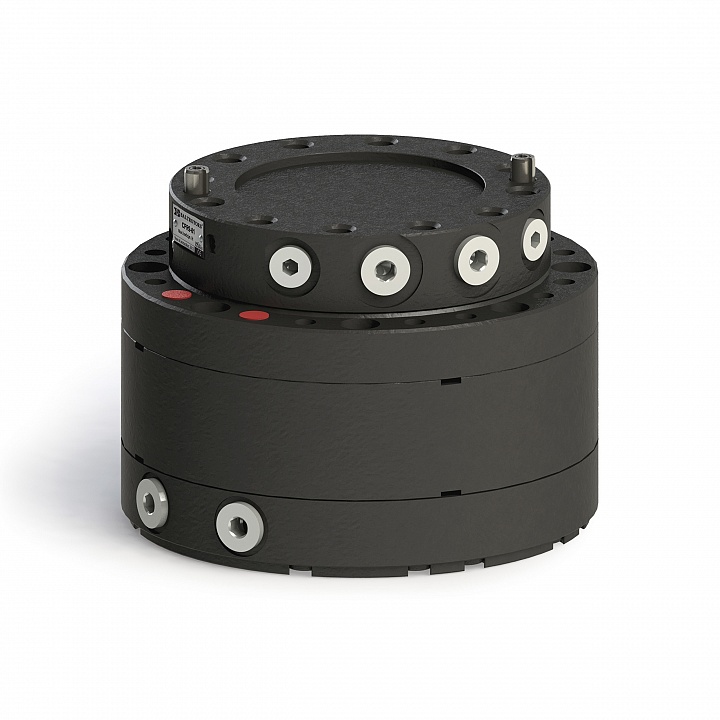

CPR9-01

CPR9-01

Max. axial load static: ±330 kN
Max. axial load dynamic: ±90 kN
Max radial load: 70 kN
Deflection: 24 kNm
Torque: 3000 Nm
Weight: 101 kg
Datasheet PDF

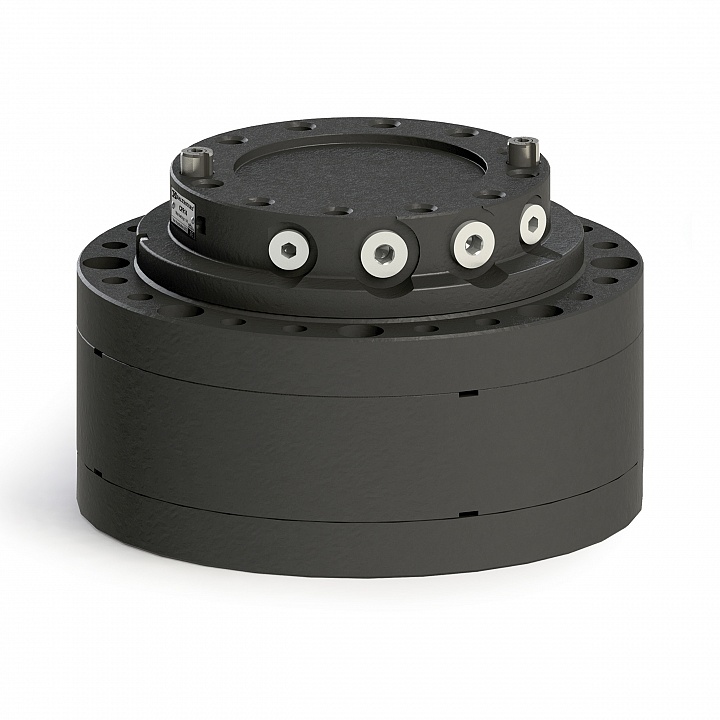

CPR14

CPR14

Max. axial load static: ±550 kN
Max. axial load dynamic: ±140 kN
Max radial load: 100 kN
Deflection: 40 kNm
Torque: 4500 Nm
Weight: 160 kg
Datasheet PDF
CPR14-01

CPR14-01

Max. axial load static: ±550 kN
Max. axial load dynamic: ±140 kN
Max radial load: 100 kN
Deflection: 40 kNm
Torque: 4500 Nm
Weight: 173 kg
Datasheet PDF

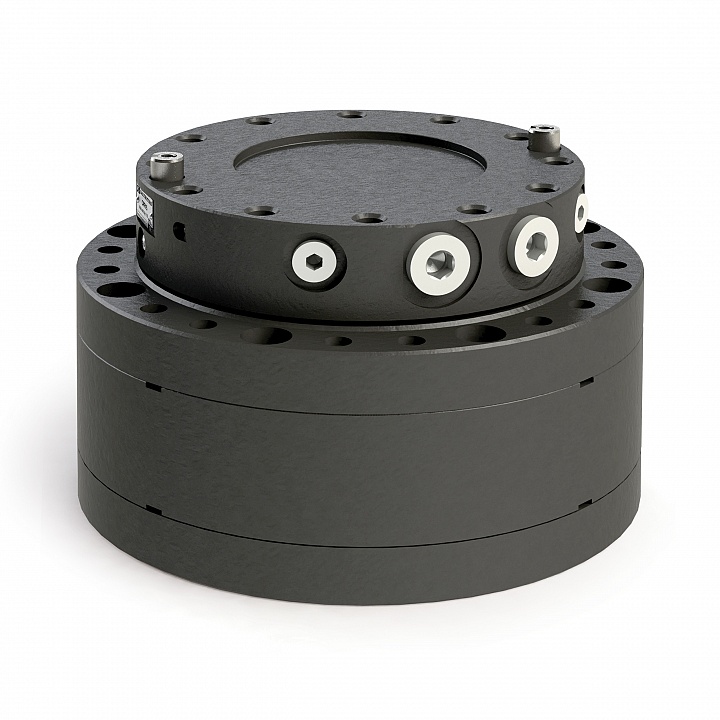

CPR15

CPR15

Max. axial load static: ±550 kN
Max. axial load dynamic: ±150 kN
Max radial load: 110 kN
Deflection: 40 kNm
Torque: 4500 Nm
Weight: 167 kg
Datasheet PDF

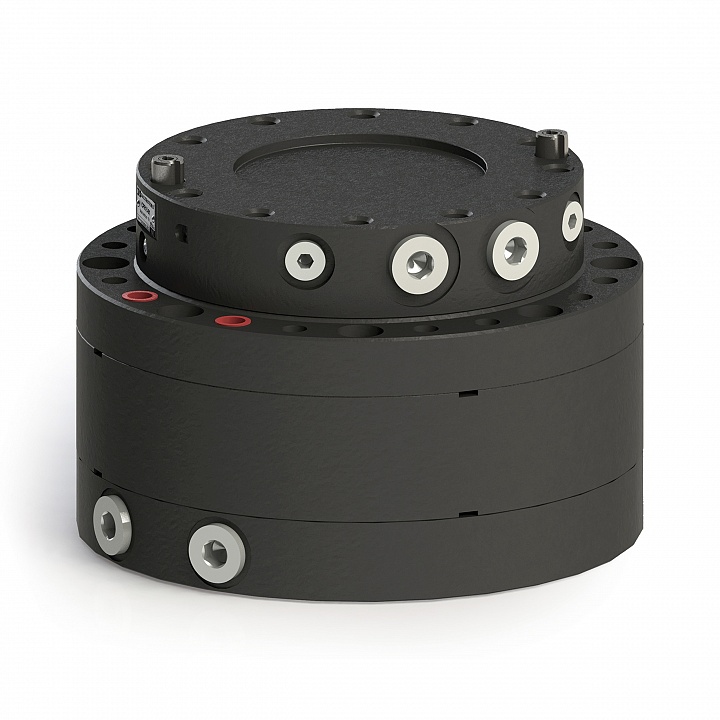

CPR15-01

CPR15-01

Max. axial load static: ±550 kN
Max. axial load dynamic: ±150 kN
Max radial load: 110 kN
Deflection: 40 kNm
Torque: 4500 Nm
Weight: 179 kg
Datasheet PDF
CPR15-03

CPR15-03

Max. axial load static: ±550 kN
Max. axial load dynamic: ±150 kN
Max radial load: 110 kN
Deflection: 40 kNm
Torque: 4500 Nm
Weight: 182 kg
Datasheet PDF
GIR12

GIR12

Max. axial load static: ±250 kN
Max. axial load dynamic: ±80 kN
Max radial load: not recommended
Deflection: not recommended
Torque: 2000 Nm
Weight: 85 kg
Datasheet PDF

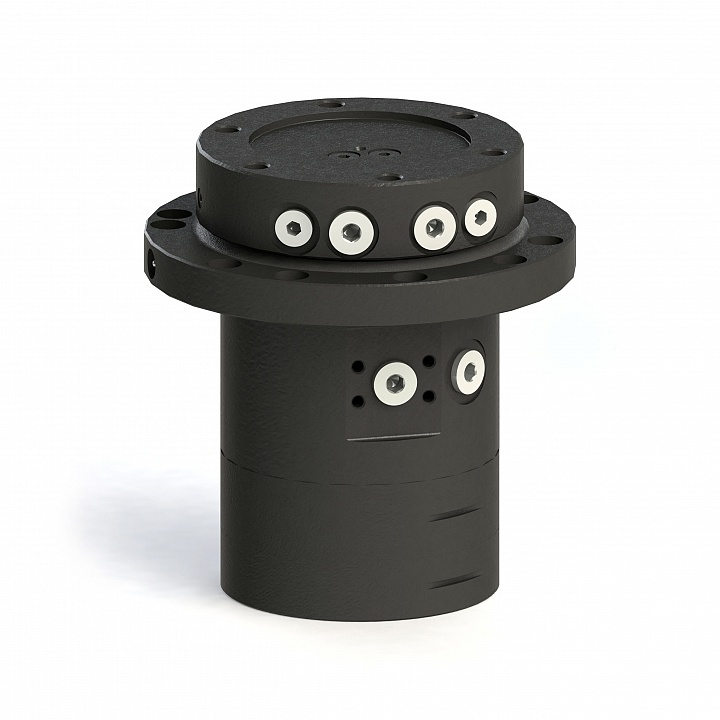

GIR12-01

GIR12-01

Max. axial load static: ±250 kN
Max. axial load dynamic: ±80 kN
Max radial load: not recommended
Deflection: not recommended
Torque: 2000 Nm
Weight: 82 kg
Datasheet PDF

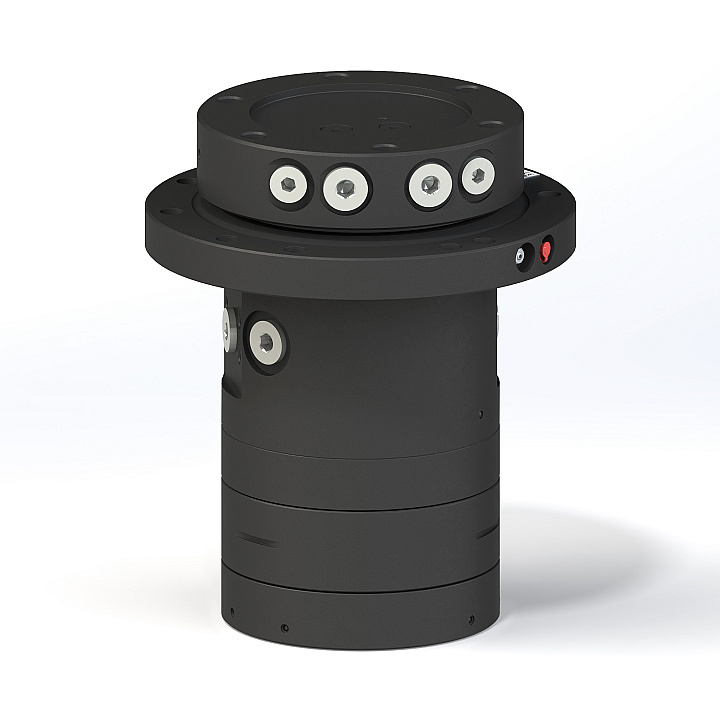

GIR12V
New

GIR12V

Max. axial load static: ±250 kN
Max. axial load dynamic: ±80 kN
Max radial load: not recommended
Deflection: not recommended
Torque: 2900 Nm
Weight: 85 kg
Datasheet PDF

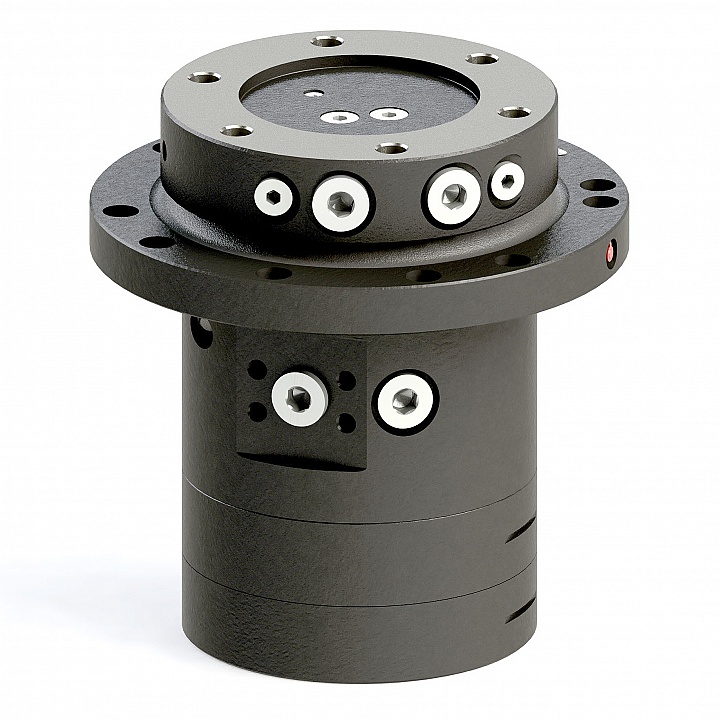

GIR25

GIR25

Max. axial load static: ±450 kN
Max. axial load dynamic: ±160 kN
Max radial load: not recommended
Deflection: not recommended
Torque: 3500 Nm
Weight: 143 kg
Datasheet PDF

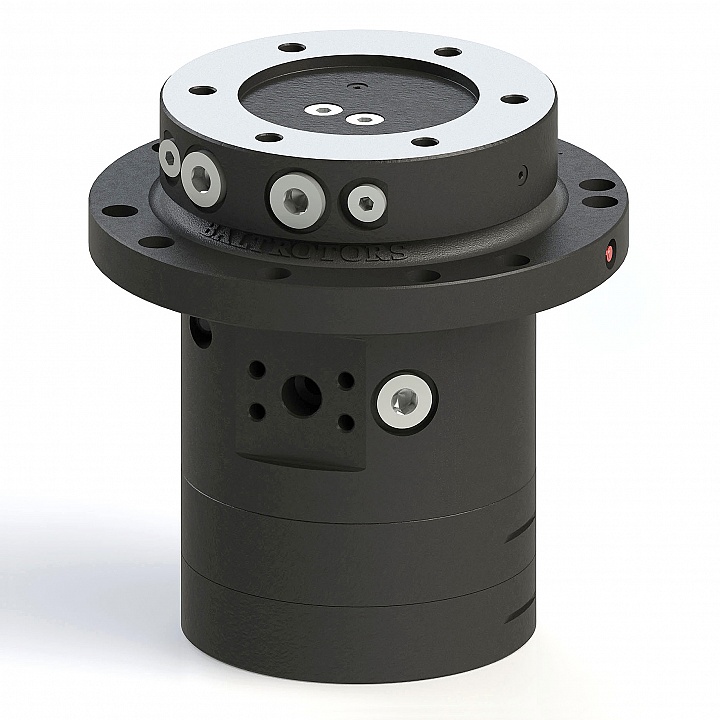

GIR25-01

GIR25-01

Max. axial load static: ±450 kN
Max. axial load dynamic: ±160 kN
Max radial load: not recommended
Deflection: not recommended
Torque: 3500 Nm
Weight: 143 kg
Datasheet PDF

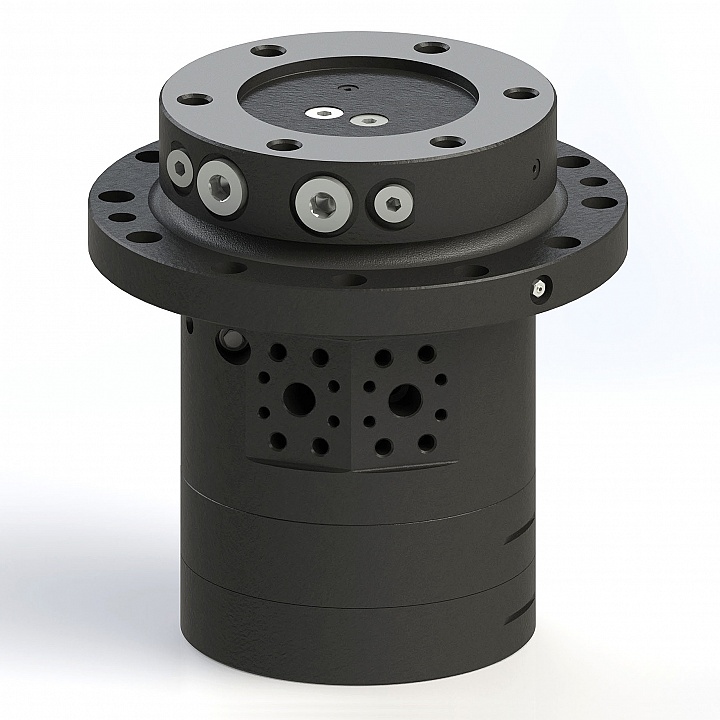

GIR25-02

GIR25-02

Max. axial load static: ±450 kN
Max. axial load dynamic: ±160 kN
Max radial load: not recommended
Deflection: not recommended
Torque: 3500 Nm
Weight: 143 kg
Datasheet PDF
GIR25-04

GIR25-04

Max. axial load static: ±450 kN
Max. axial load dynamic: ±160 kN
Max radial load: not recommended
Deflection: not recommended
Torque: 3500 Nm
Weight: 143 kg
Datasheet PDF
