GIR25-01
GIR25-01
Description

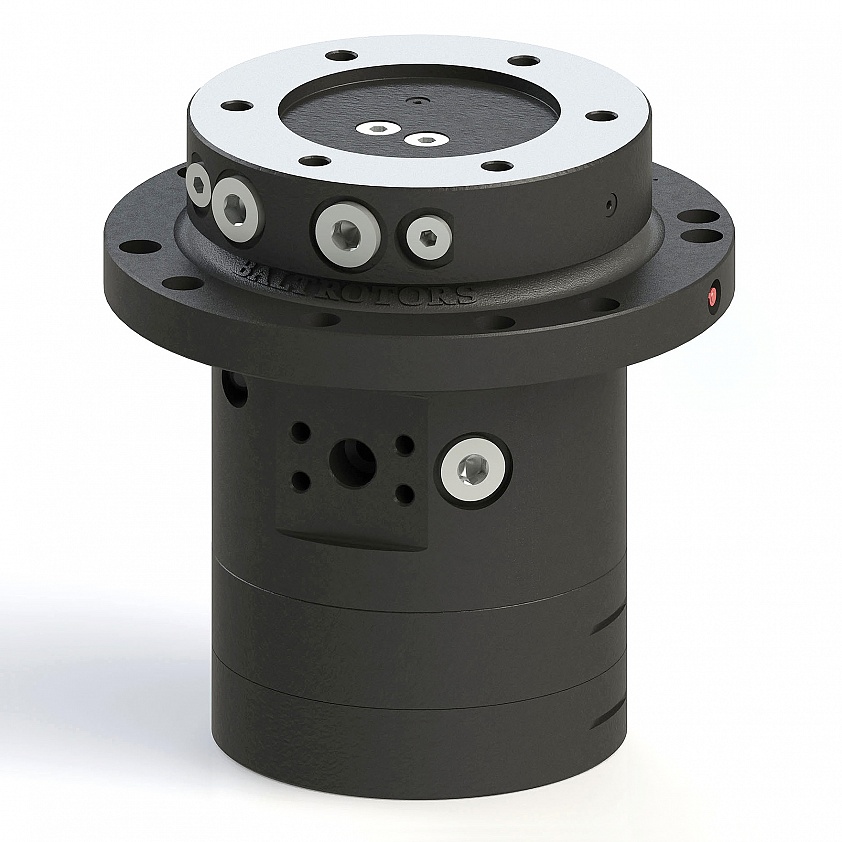

Radial piston-type rotator.
Suitable for poly-grapples, sorting grabs, high capacity grapples and other attachments.
GIR rotators are ideal for the working conditions where small-diameter rotator body and high axial loads are required.
Max axial load static - theoretical maximum load (without accelerations) for link mounted applications.

Technical specification

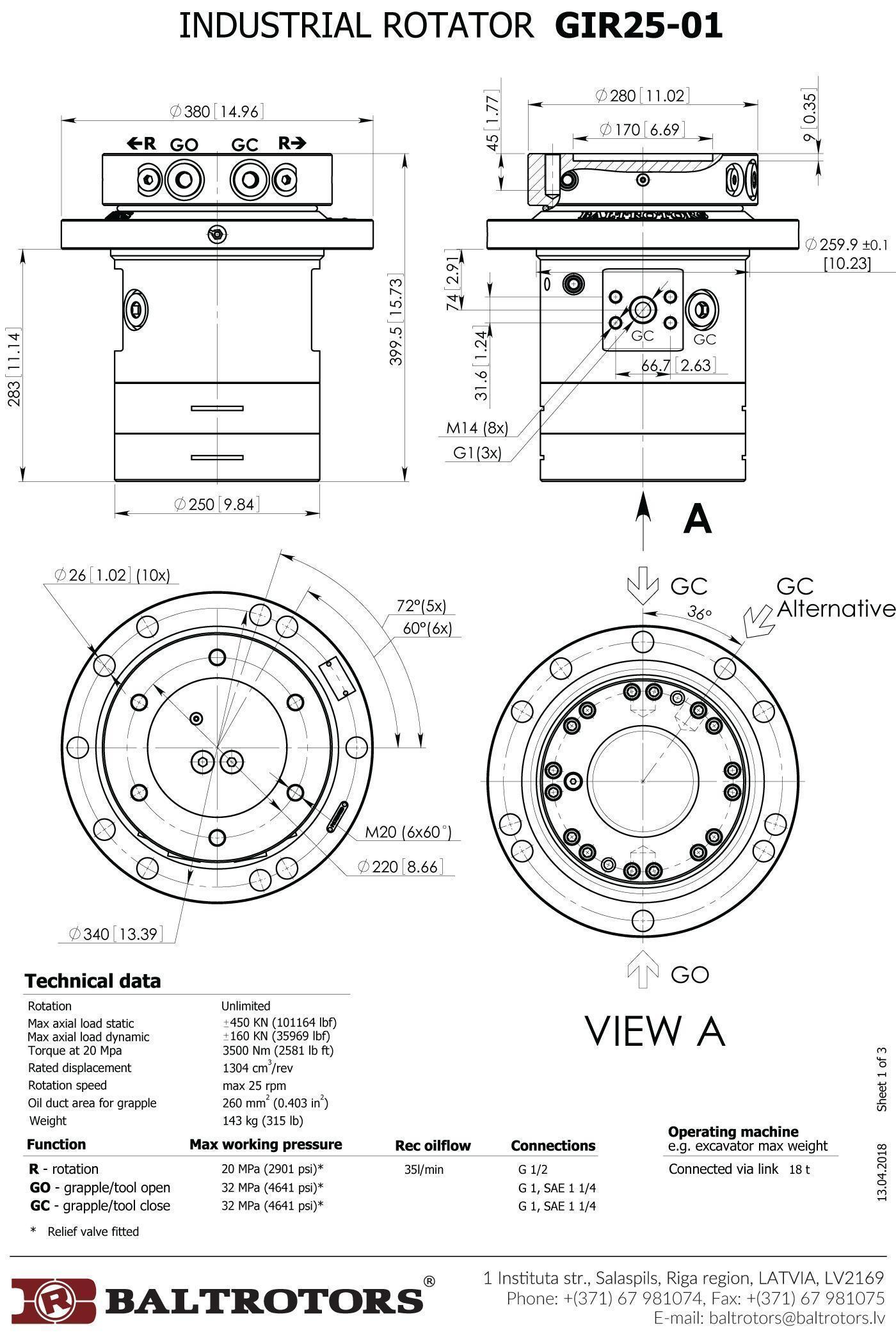

Dimensions
Compatible products
|
Max. axial load static | ±450 kN (±101164 lbf) |
|
Max. axial load dynamic | ±160 kN (±35969 lbf) |
|
Max radial load | not recommended |
|
Deflection | not recommended |
|
Torque | 3500 Nm (2581 lb ft) |
|
Weight | 143 kg |
