GIR12-01
GIR12-01
Description
Radial piston-type rotator.
Suitable for poly-grapples, sorting grabs, high capacity grapples and other attachments.
GIR rotators are ideal for the working conditions where small-diameter rotator body and high axial loads are required.
Max axial load static - theoretical maximum load (without accelerations) for link mounted applications.

Technical specification

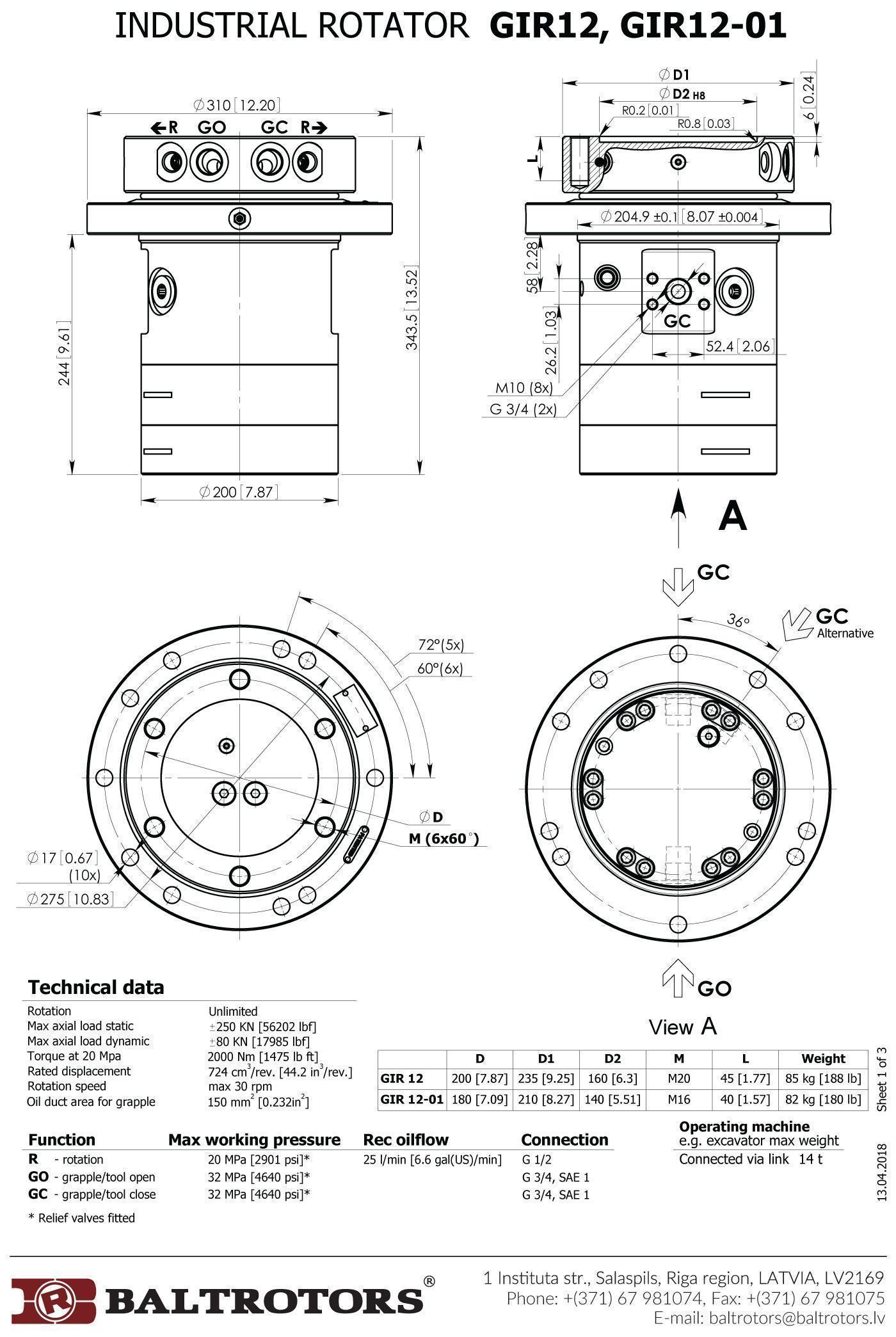

Dimensions
Compatible products
|
Max. axial load static | ±250 kN (±56202 lbf) |
|
Max. axial load dynamic | ±80 kN (±17985 lbf) |
|
Max radial load | not recommended |
|
Deflection | not recommended |
|
Torque | 2000 Nm (1475 lb ft) |
|
Weight | 82 kg |
