CPR8
CPR8
Description
Patented axial boxer-type piston rotator.
Suitable for poly-grapples, sorting grabs, high capacity grapples and other attachments.
CPR rotators are ideal for working conditions where flat-body rotator models and high torque is required.
Max axial load static - theoretical maximum load (without accelerations) for link mounted applications.
Technical specification

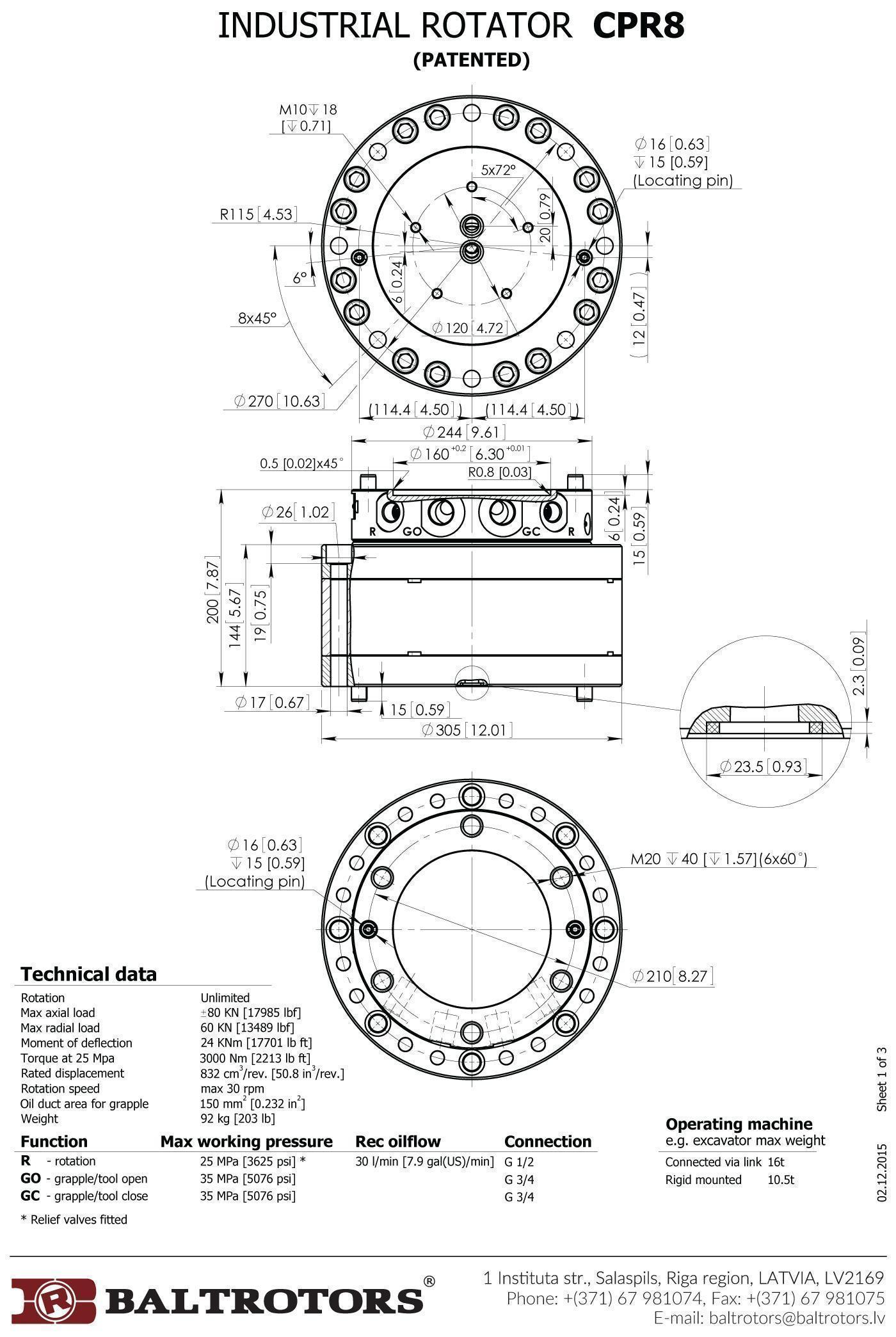

Dimensions
Compatible products
Max. axial load static | ±330 kN (±74187 lbf) | |
Max. axial load dynamic | ±80 kN (±17985 lbf) | |
Max radial load | 60 kN (13489 lbf) | |
Deflection | 24 kNm (17701 lb ft) | |
Torque | 3000 Nm (2213 lb ft) | |
Weight | 92 kg |
