Description
Powerful Industrial Vane type rotator.
Integratable rotator for tough work in sorting, timber grabs, recycling or scrap orange peel grapples, attached on heavy excavators or large cranes.
Now powered by independent vane type motor to increase torque and braking, while motor protected from external forces.
Relief valves fitted to absorb pressure peaks for rotation and grapple functions.
Max axial load static - theoretical maximum load (without accelerations) for link mounted applications.
Please contact Baltrotors to receive datasheet etc.

Technical specification

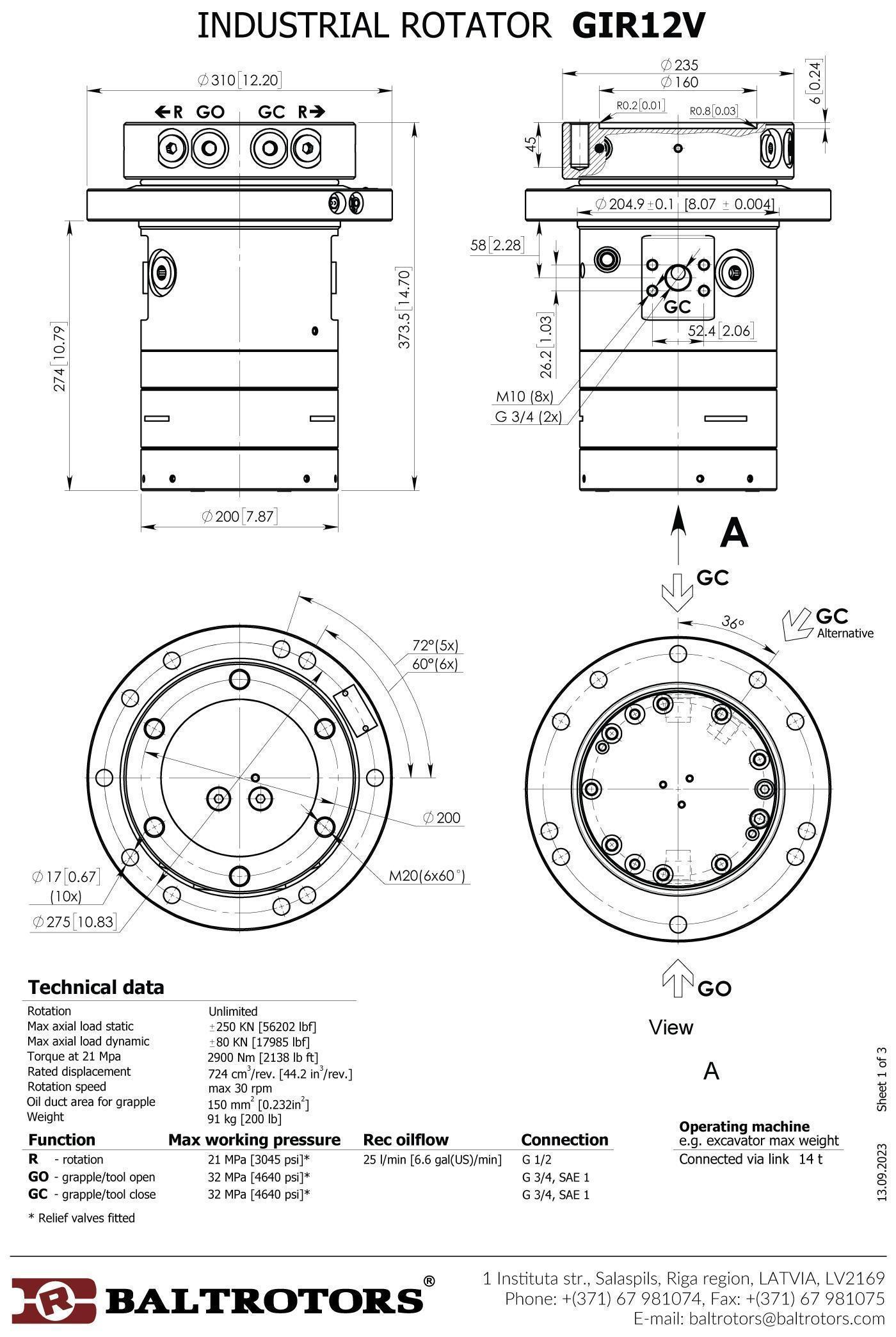

Dimensions
Compatible products
|
Max. axial load static | ±250 kN (±56202 lbf) |
|
Max. axial load dynamic | ±80 kN (±17985 lbf) |
|
Max radial load | not recommended |
|
Deflection | not recommended |
|
Torque | 2900 Nm (2138 lb ft) |
|
Weight | 85 kg |
