BR10
BR10
Description
Single brake swing damper.
Upper connection - EYE form factor of the knuckle joint.
Lower connection - FORK form factor of the knuckle joint.
Technical specification

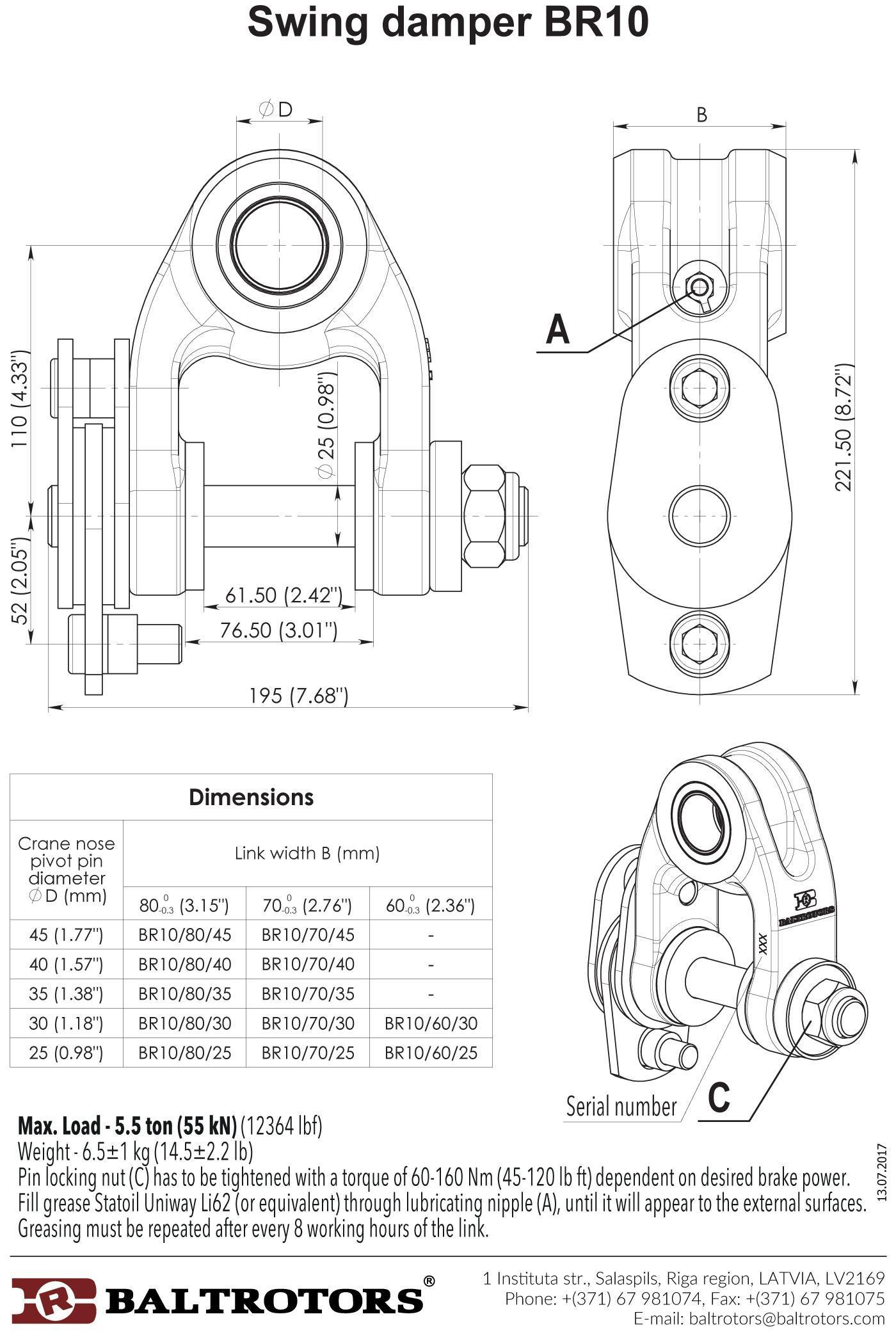

Dimensions
Compatible products
|
Max. load | 5.5 ton (12364 lbf) |
|
Weight | 6.5±1 kg |
|
Upper connection L | 60/70/80 mm (2.36/2.76/3.15 in) |
|
Upper connection D | 25/30/35/40/45 mm (0.98/1.18/1.38/1.57/1.77 in) |
|
Lower Axle d & hole D | 25 mm (0.98 in) |
|
Lower Flange d x pos & bolt hole D | 61.5/76.5 mm (2.42/3.01 in) |
| Link type | Single Swingdamper |
