A1.0410
A1.0410
Description
Solution for mounting on crane via link (Small agricultural and forestry Vehicles).
Upper connection - EYE form factor of the knuckle joint.
Lower connection - AXLE form factor to be built in grapple.

Technical specification

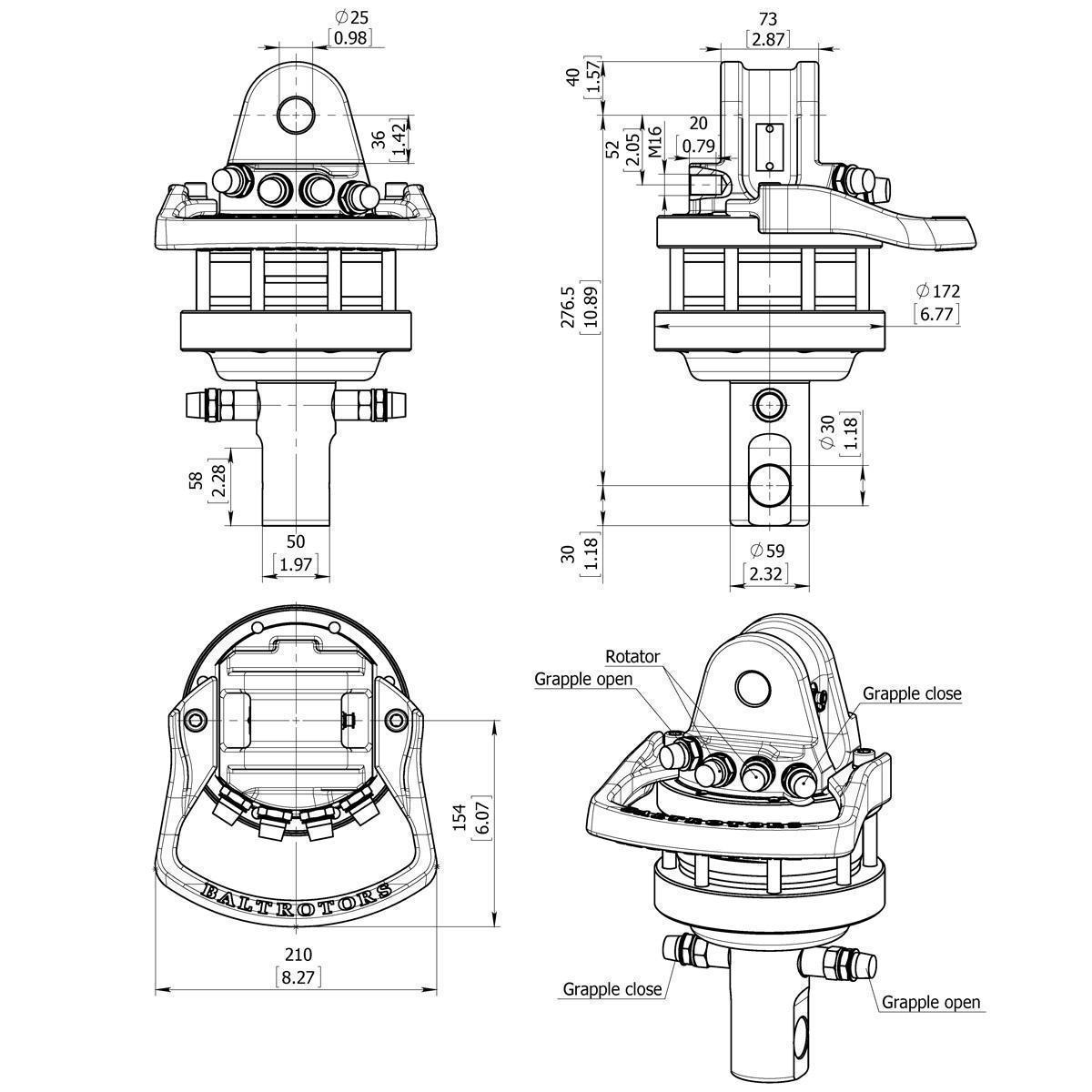

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 45 kN (10118 lbf) |
|
Max. axial load dynamic | 25 kN (5621 lbf) |
|
Torque | 1100 Nm (811 lb ft) |
|
Rec. oilflow | 20 l/min |
|
Weight | 24 kg |
|
Upper connection L | 73 mm (2.87 in) |
|
Upper connection D | 25 mm (0.98 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
