A1.0409
A1.0409

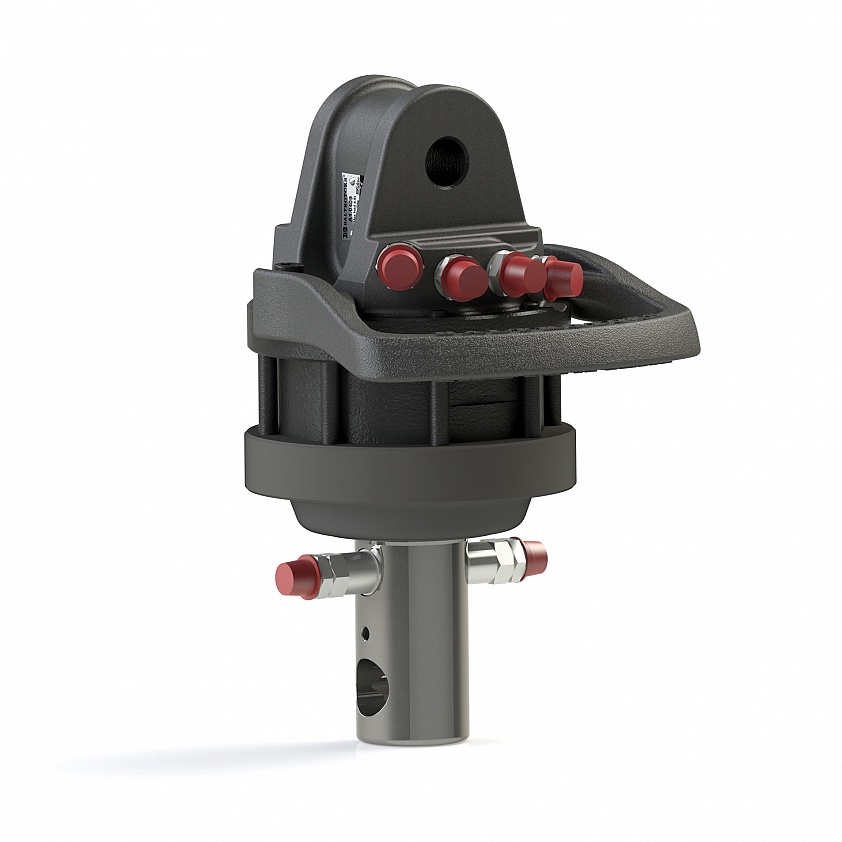

Description
Solution for mounting on crane via link (Small agricultural and forestry Vehicles).
Upper connection - EYE form factor of the knuckle joint.
Lower connection - AXLE form factor to be built in grapple.
Technical specification

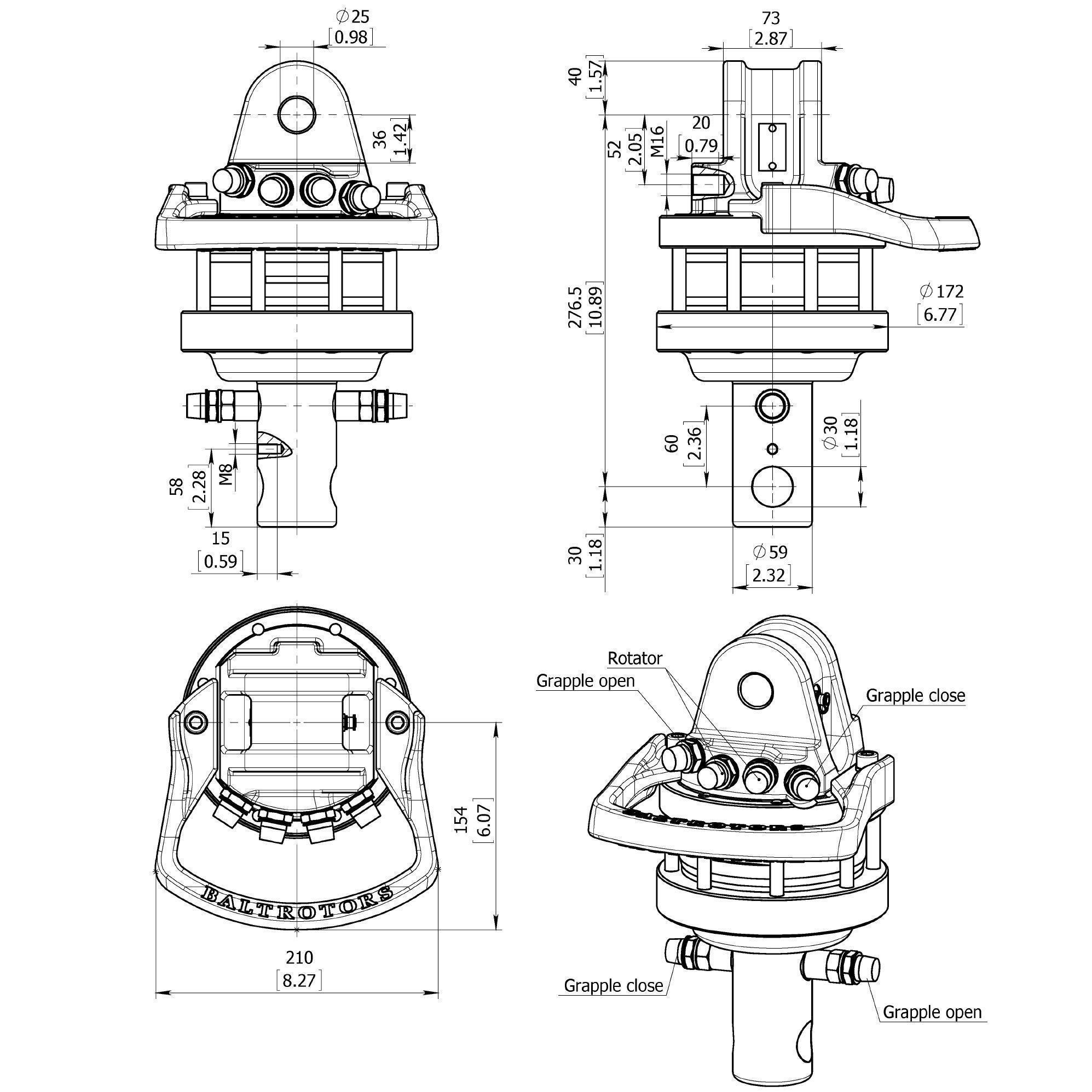

Dimensions
Compatible products
Rotation | Unlimited | |
Max. axial load static | 45 kN (10118 lbf) | |
Max. axial load dynamic | 25 kN (5621 lbf) | |
Torque | 1100 Nm (811 lb ft) | |
Rec. oilflow | 20 l/min | |
Weight | 24 kg | |
Upper connection L | 73 mm (2.87 in) | |
Upper connection D | 25 mm (0.98 in) | |
Lower Axle d & hole D | ||
Lower Flange d x pos & bolt hole D | ||
Warranty | 2 years |
