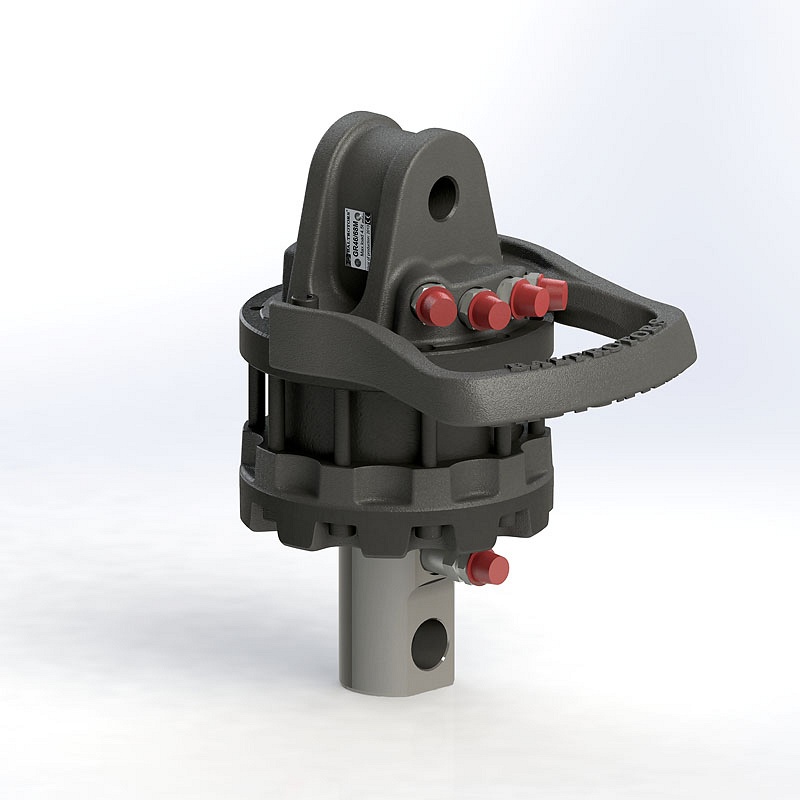

GR46/68M
GR46/68M
Description
Solution for mounting on crane via link, suitable for agricultural and forestry vehicles.
Upper connection - EYE form factor of the knuckle joint.
Lower connection - AXLE form factor, to be built in grapple/tool.
Technical specification

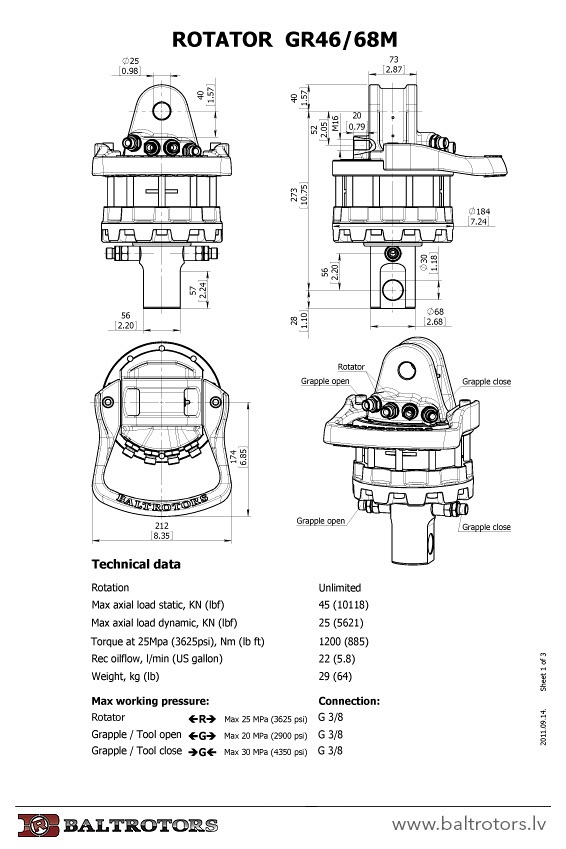

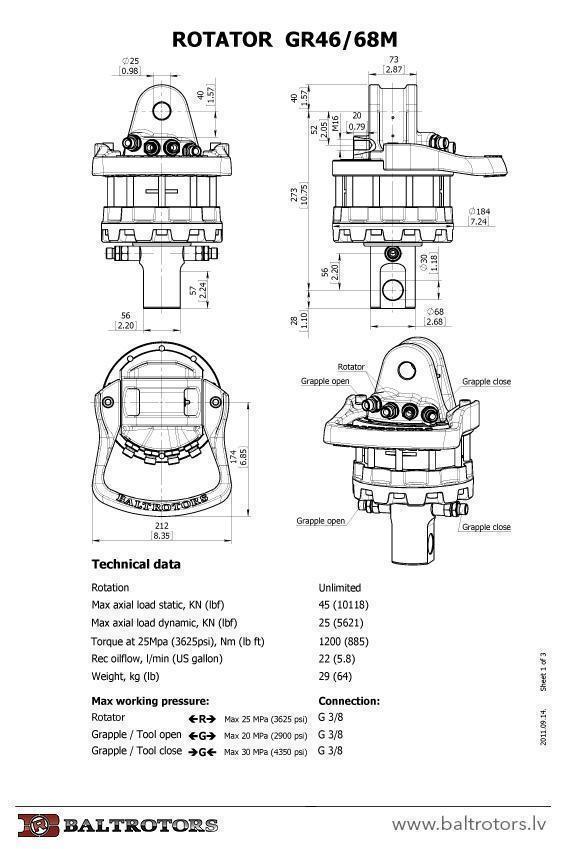

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 45 kN (10118 lbf) |
|
Max. axial load dynamic | 25 kN (5621 lbf) |
|
Torque | 1200 Nm (885 lb ft) |
|
Rec. oilflow | 22 l/min |
|
Weight | 29 kg |
|
Upper connection L | 73 mm (2.87 in) |
|
Upper connection D | 25 mm (0.98 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
