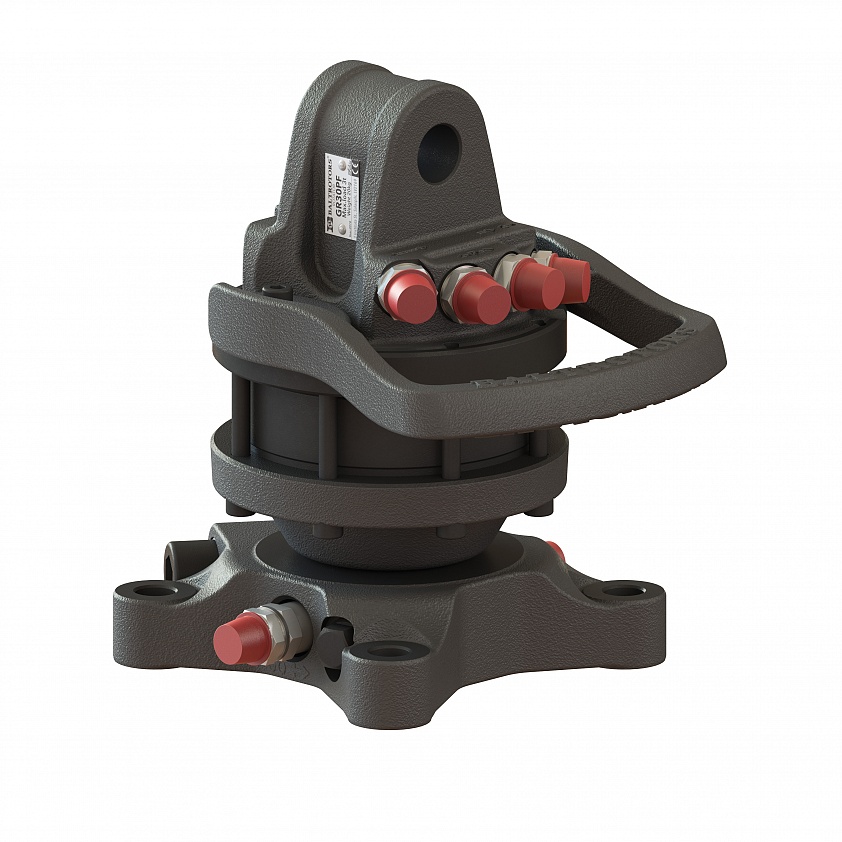

GR30PF
GR30PF
Description
Modification of GR30 rotator with “square" 140 mm flange-type lower connection.
Upper connection - EYE form factor of the knuckle joint.
Lower connection - FLANGE form factor, to be mounted on the grapple/tool.
Technical specification
Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 30 kN (2.36 in) |
|
Max. axial load dynamic | 15 kN (3372 lbf) |
|
Torque | 1000 Nm (738 lb ft) |
|
Rec. oilflow | 20 l/min (5.3 US gallon) |
|
Weight | 20 kg (44 lb) |
|
Upper connection L | 60 mm (2.36 in) |
|
Upper connection D | 25 mm (0.98 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
