Technical specification

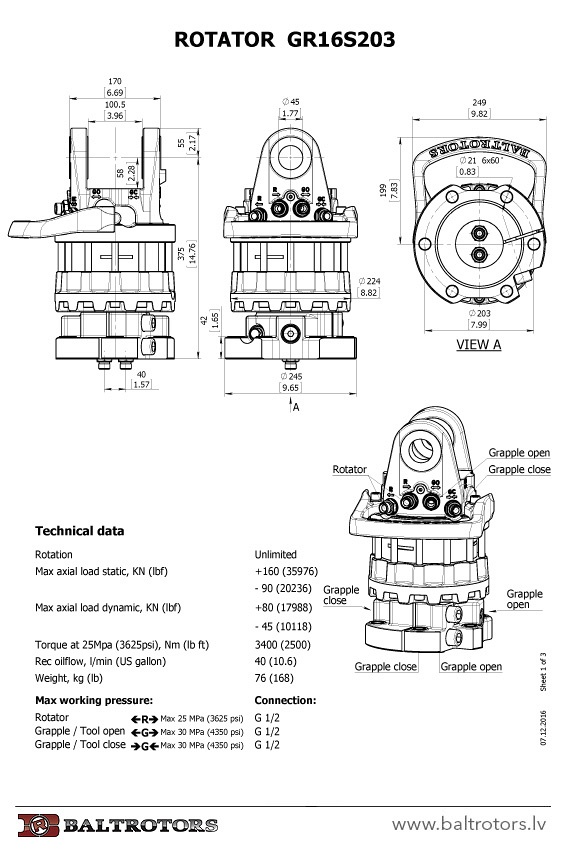

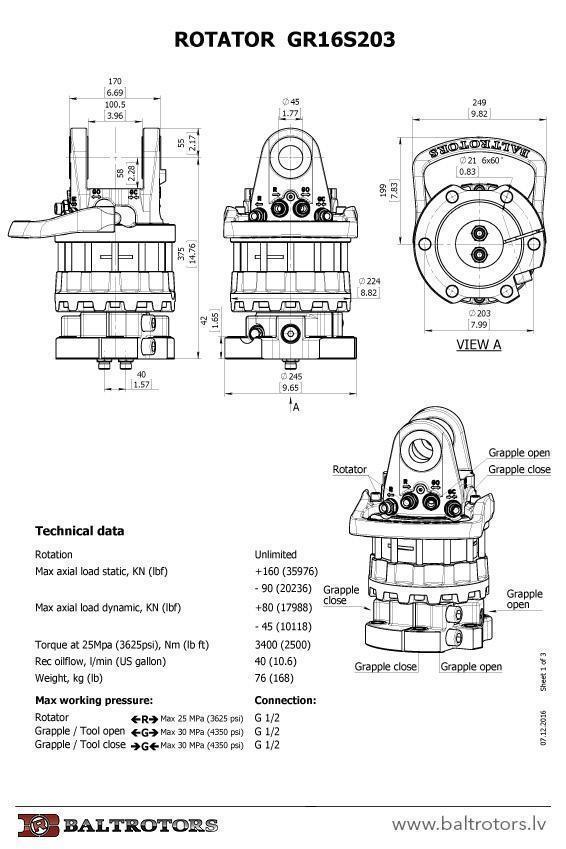

Dimensions
Compatible products
Rotation Unlimited
Max. axial load static +160 -90 kN (+35976 -20236 lbf)
Max. axial load dynamic +80 -45 kN (+17988 -10118 lbf)
Torque 3400 Nm (2500 lb ft)
Rec. oilflow 40 l/min
Weight 76 kg
Upper connection L 100.5 mm (3.96 in)
Upper connection D 45 mm (1.77 in)
Lower Axle d & hole D
Lower Flange d x pos & bolt hole D
Warranty 2 years
