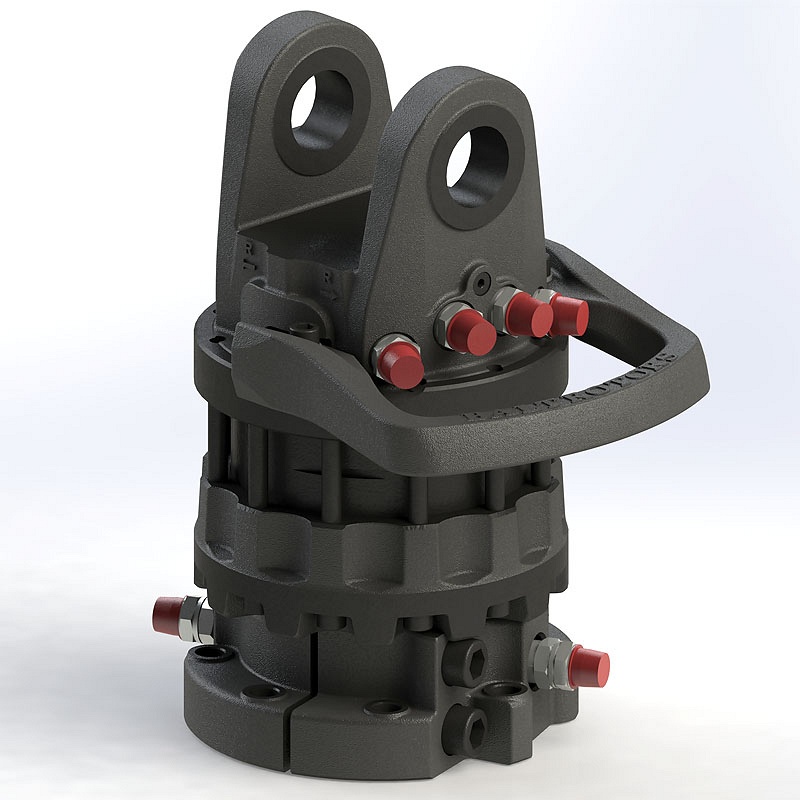

GR16A8
GR16A8
Description
A durable Double Bearing solution for compressive loads, suitable for professional use in
Upper connection - FORK form factor of the knuckle joint
Lower connection - FLANGE (to be mounted on the grapple)
Technical specification

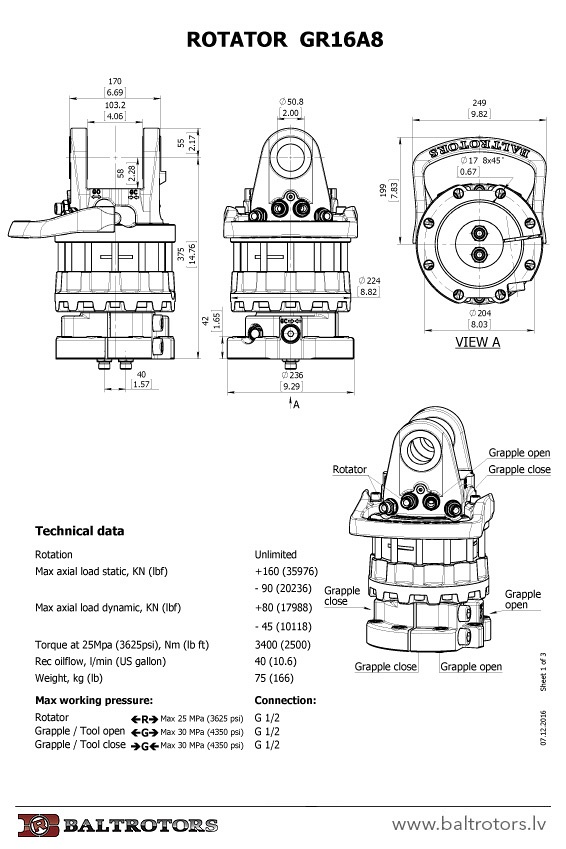

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | +160 -90 kN (+35976 -20236 lbf) |
|
Max. axial load dynamic | +80 -45 kN (+17988 -10118 lbf) |
|
Torque | 3400 Nm (2500 lb ft) |
|
Rec. oilflow | 40 l/min |
|
Weight | 75 kg |
|
Upper connection L | 103.2 mm (4.06) |
|
Upper connection D | 50.8 mm (2.00 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
