GR16S-2
GR16S-2
Description
Modification of GR16S rotator with hose inlets from 2 sides of the upper stator plate.
Upper connection - FORK form factor of the knuckle joint.
Lower connection - FLANGE form factor, to be mounted on the grapple/tool.

Technical specification

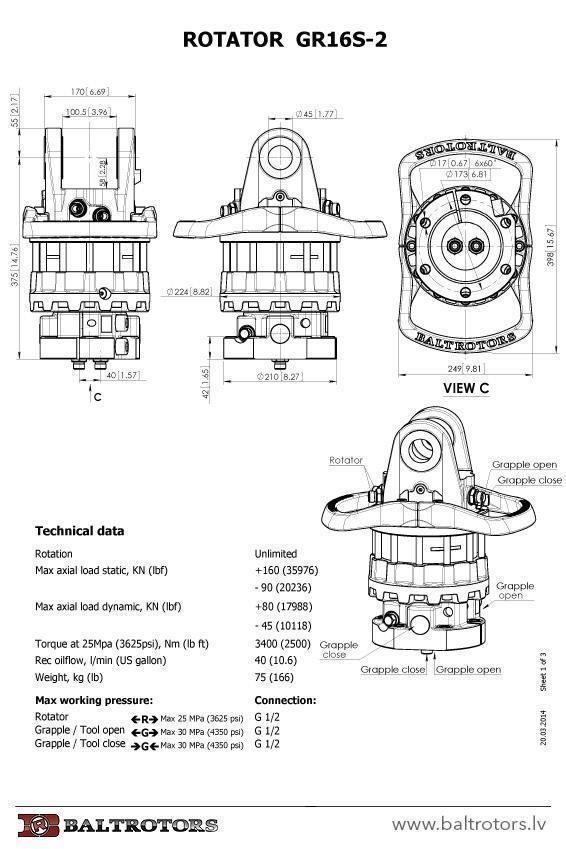

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | +160 -90 kN (+35976 -20236 lbf) |
|
Max. axial load dynamic | +80 -45 kN (+17988 -10118 lbf) |
|
Torque | 3400 Nm (2500 lb ft) |
|
Rec. oilflow | 40 l/min |
|
Weight | 75 kg |
|
Upper connection L | 100.5 mm (3.96 in) |
|
Upper connection D | 45 mm (1.77 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
