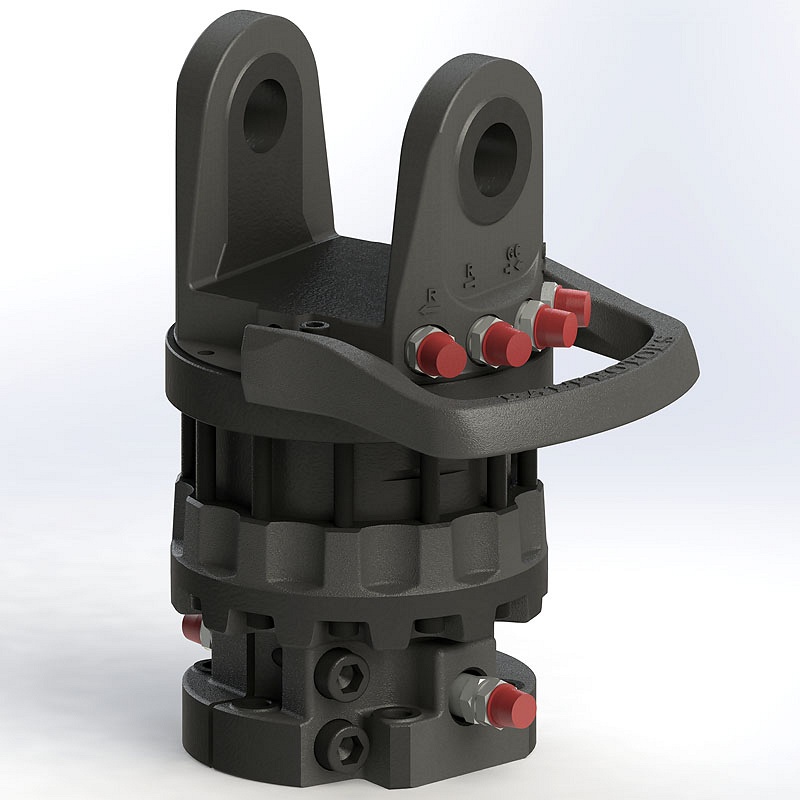

GR16H
GR16H
Description
A durable Double Bearing solution for compressive loads, suitable for professional use in
Upper connection - FORK form factor of the knuckle joint
Lower connection - FLANGE (to be mounted on the grapple)
Technical specification

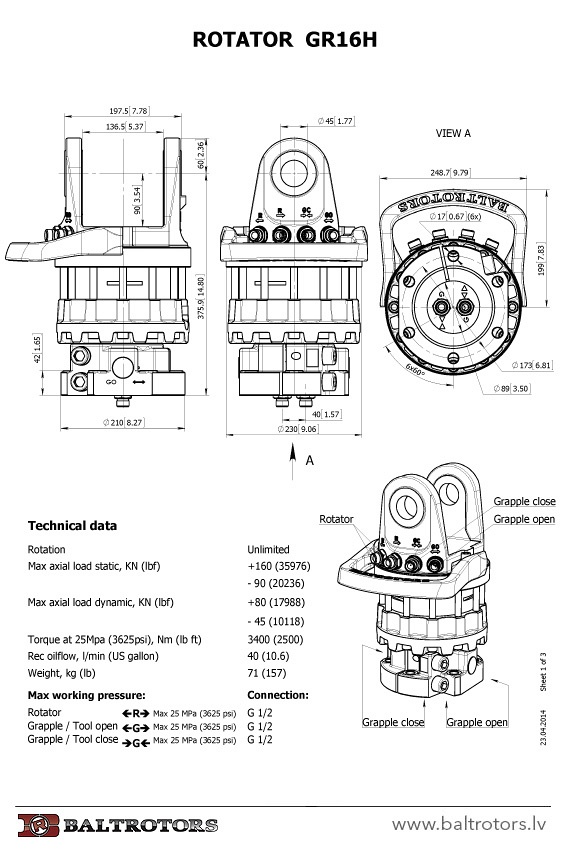

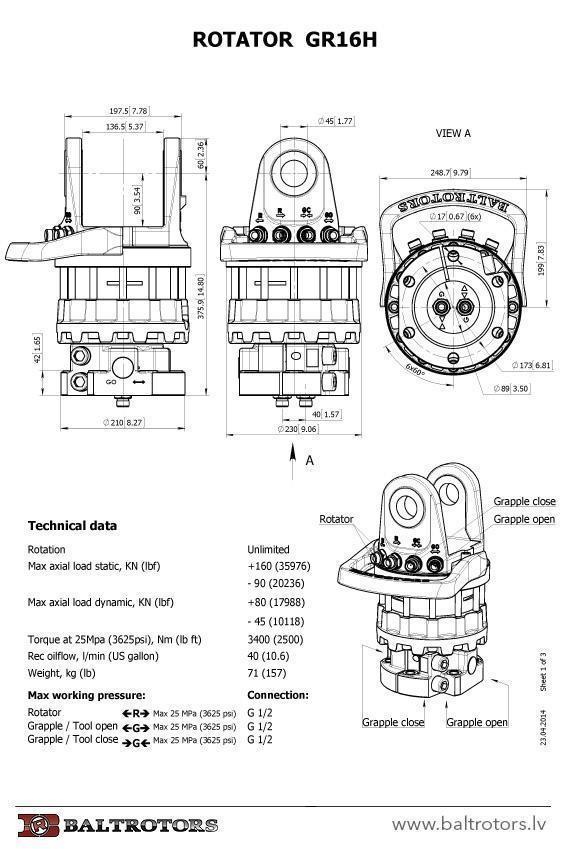

Dimensions
Compatible products
Rotation | Unlimited | |
Max. axial load static | +160 -90 kN (+35976 -20236 lbf) | |
Max. axial load dynamic | +80 -45 kN (+17988 -10118 lbf) | |
Torque | 3400 Nm (2500 lb ft) | |
Rec. oilflow | 40 l/min | |
Weight | 71 kg | |
Upper connection L | 136.5 mm (5.37 in) | |
Upper connection D | 45 mm (1.77 in) | |
Lower Axle d & hole D | ||
Lower Flange d x pos & bolt hole D | ||
Warranty | 2 years |
