Technical specification
Compatible products
Rotation Unlimited
Max. axial load static +60 -50 kN (+13491 -11242 lbf)
Max. axial load dynamic +30 -25 kN (+6745 -5621 lbf)
Torque 2400 Nm (1770 lb ft)
Rec. oilflow 28 l/min
Weight 46 kg

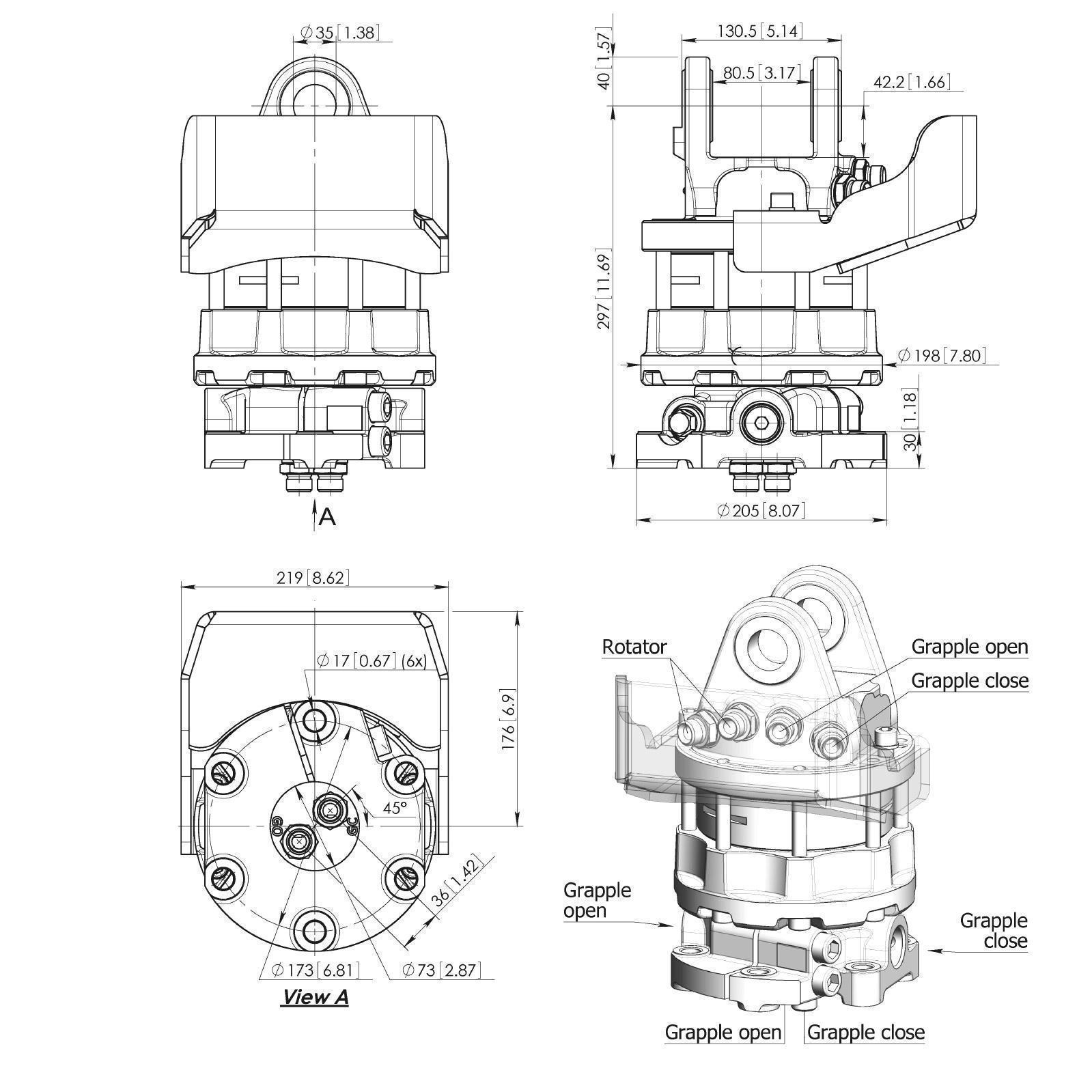

Upper connection L 80.5 mm (3.17 in)
Upper connection D 35 mm (1.38 in)
Lower Axle d & hole D
Lower Flange d x pos & bolt hole D
Warranty 2 years
