GR623-2
GR623-2
Description

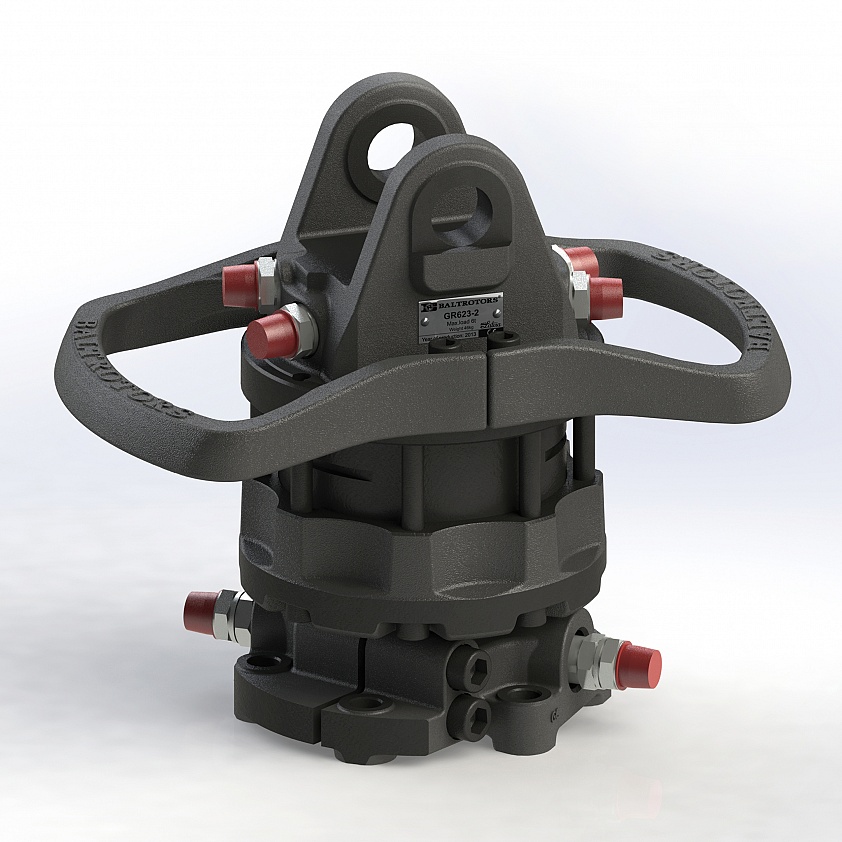

Modification of GR623 rotator with hose inlets from 2 sides of the upper stator plate.
Upper connection - FORK form factor of the knuckle joint.
Lower connection - FLANGE form factor, to be mounted on the grapple/tool.

Technical specification

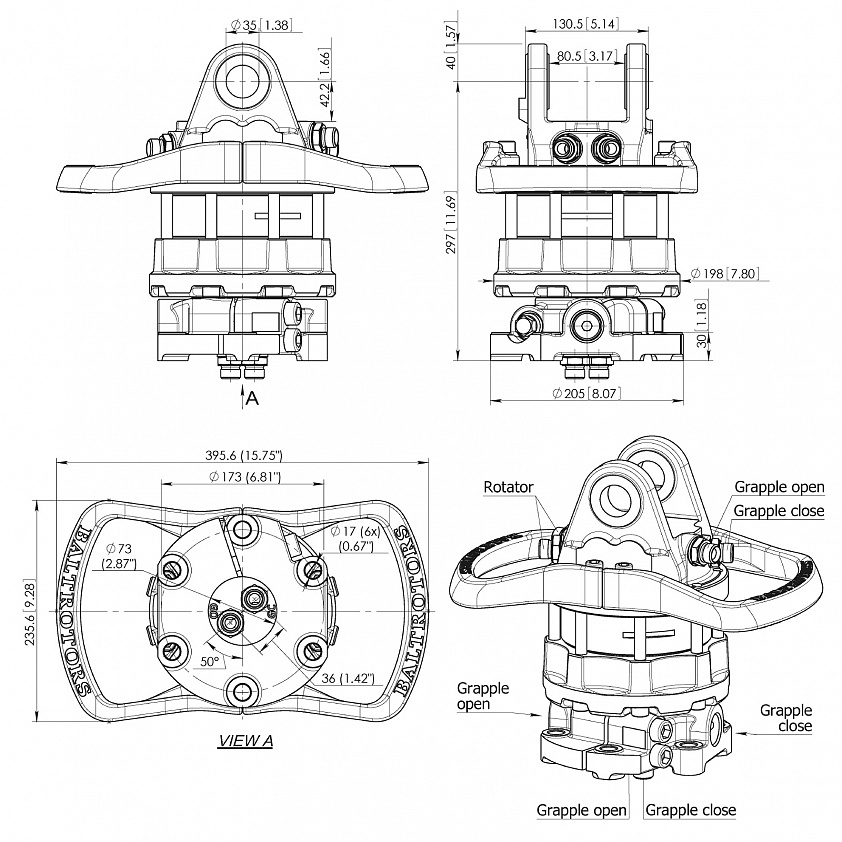

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | +60 -50 kN (+13491 -11242 lbf) |
|
Max. axial load dynamic | +30 -25 kN (+6745 -5621 lbf) |
|
Torque | 2400 Nm (1770 lb ft) |
|
Rec. oilflow | 28 l/min |
|
Weight | 47 kg |
|
Upper connection L | 80.5 mm (3.17 in) |
|
Upper connection D | 35 mm (1.38 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
