CPR5
CPR5
Apraksts

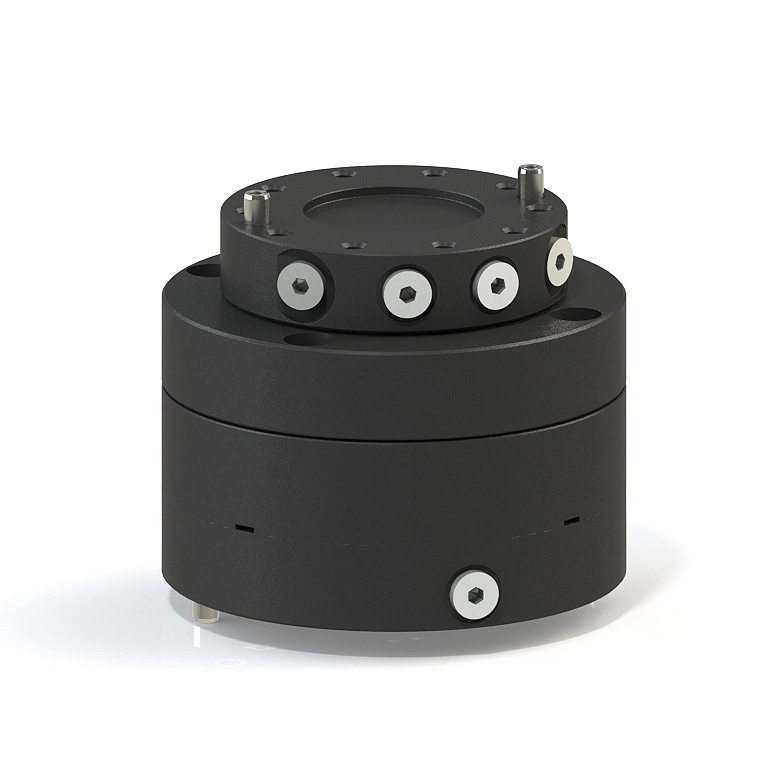

Compact radial piston type rotator, rotates and positions the cargo in a precise and controlled manner.
Version with hose outlet connections to the side.
Max axial load static - theoretical maximum load (without accelerations) for link mounted applications.
Tehniskie rādītāji

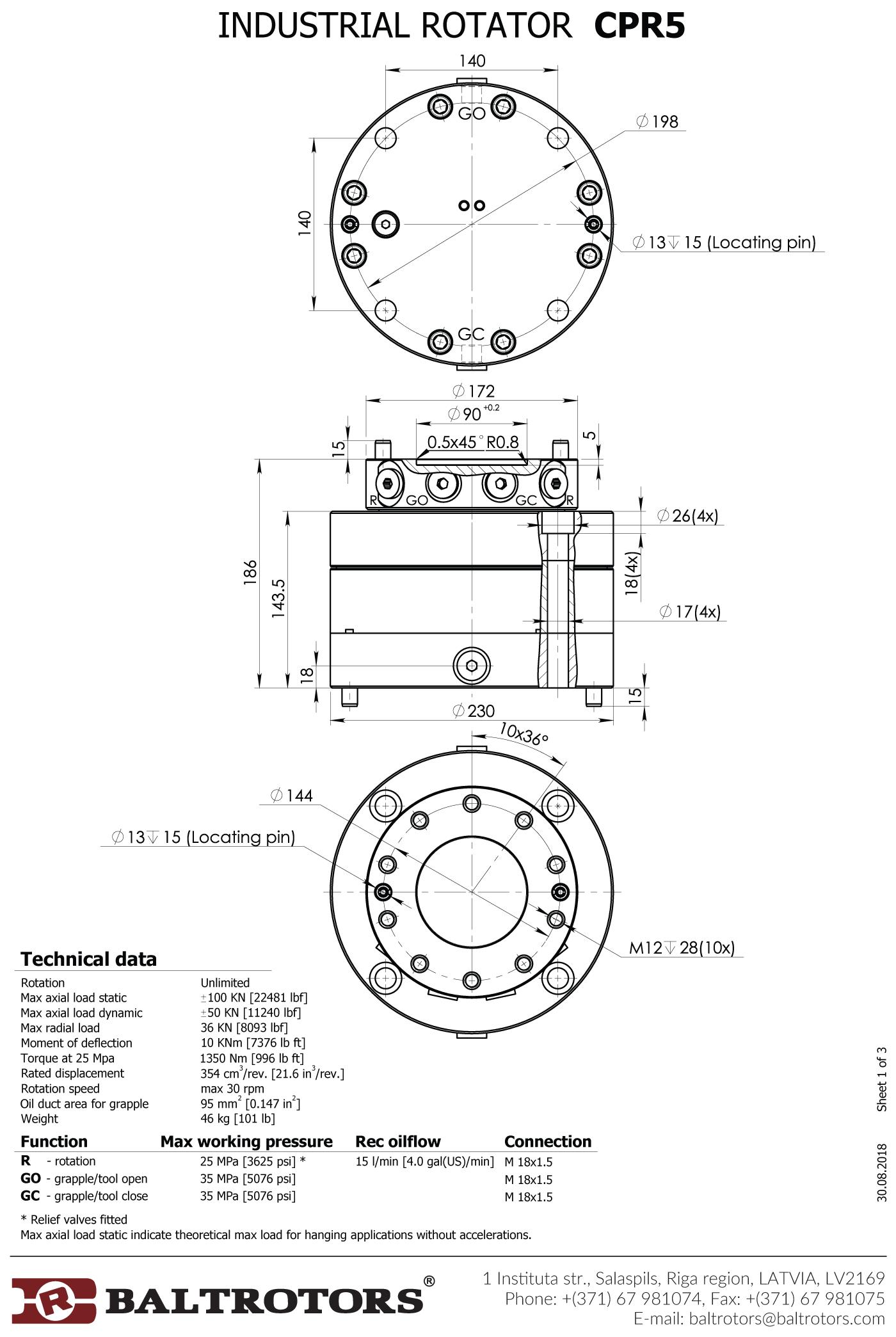

Izmēri
Saderīgie produkti
|
Maks. aks. slodze stat. | ±100 kN (22481 lbf) |
|
Max. axial load dynamic | ±50 kN (11240 lbf) |
|
Max radial load | 36 kN (8093 lbf) |
|
Deflection | 10 kNm (7376 lb ft) |
|
Griezes moments | 1350 Nm (996 lb ft) |
|
Svars | 46 kg |
