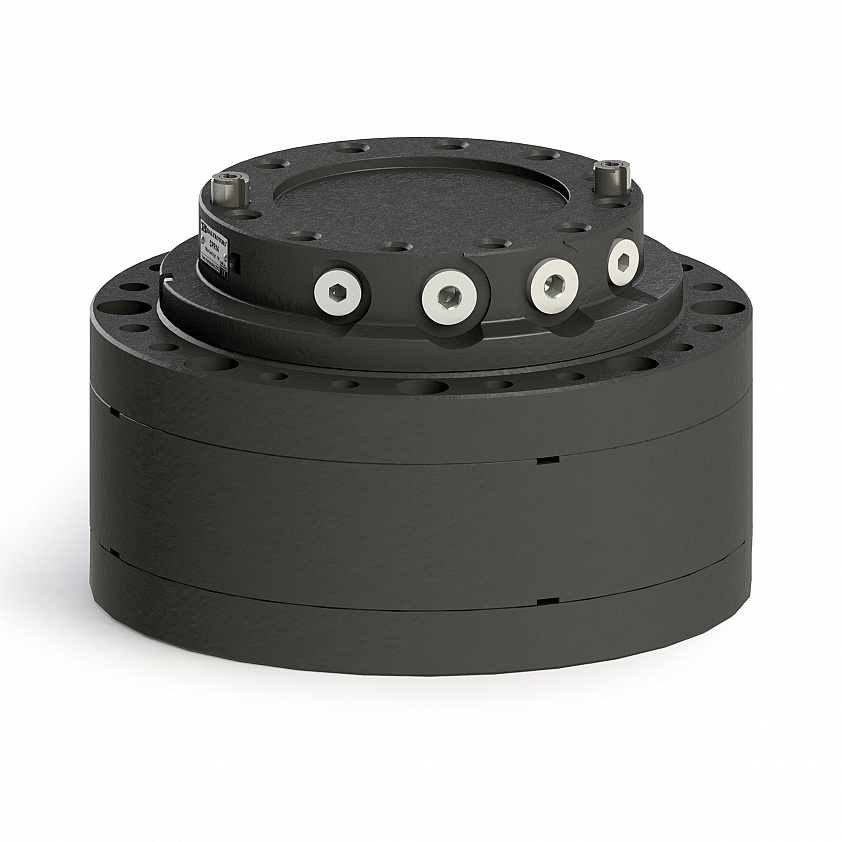

CPR14
CPR14
Apraksts
Patented axial boxer-type piston rotator.
Suitable for poly-grapples, sorting grabs, high capacity grapples and other attachments.
CPR rotators are ideal for working conditions where flat-body rotator models and high torque is required.
Max axial load static - theoretical max load for link mounted applications.
Tehniskie rādītāji
Izmēri
Saderīgie produkti
|
Maks. aks. slodze stat. | ±550 kN (±123645 lbf) |
|
Max. axial load dynamic | ±140 kN (±31473 lbf) |
|
Max radial load | 100 kN (22481 lbf) |
|
Deflection | 40 kNm (29502 lb ft) |
|
Griezes moments | 4500 Nm (3319 lb ft) |
|
Svars | 160 kg |
