HR4-03
HR4-03
Description

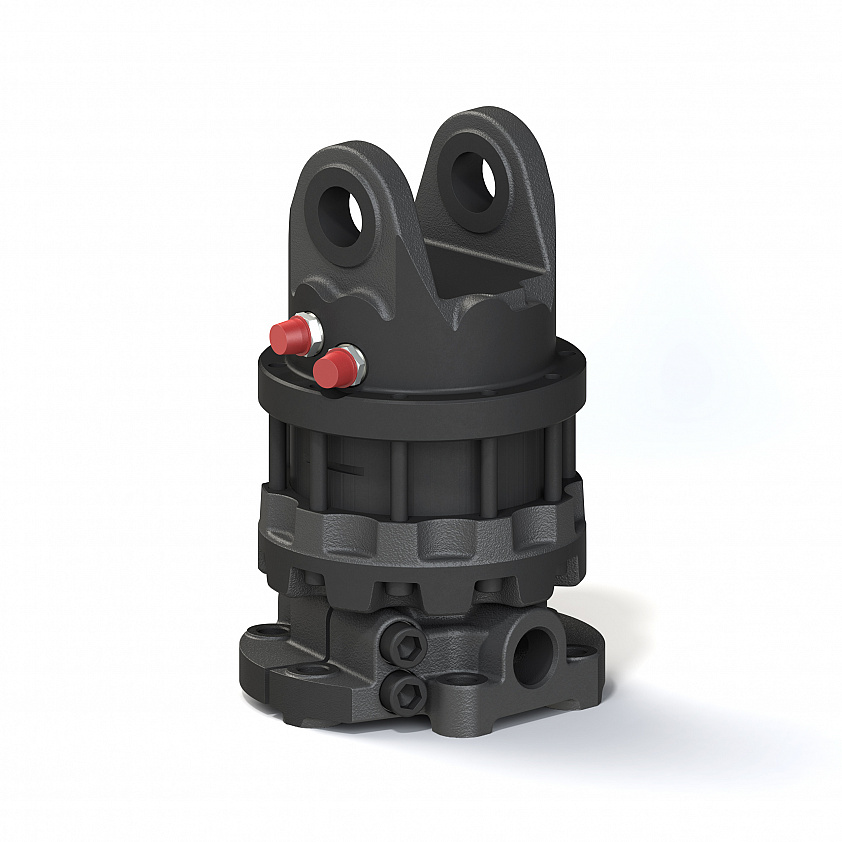

Rotator specially designed for the thinning harvester heads.
Upper connection - FORK form factor of the knuckle joint
Lower connection - FLANGE (to be mounted on the grapple)
Technical specification

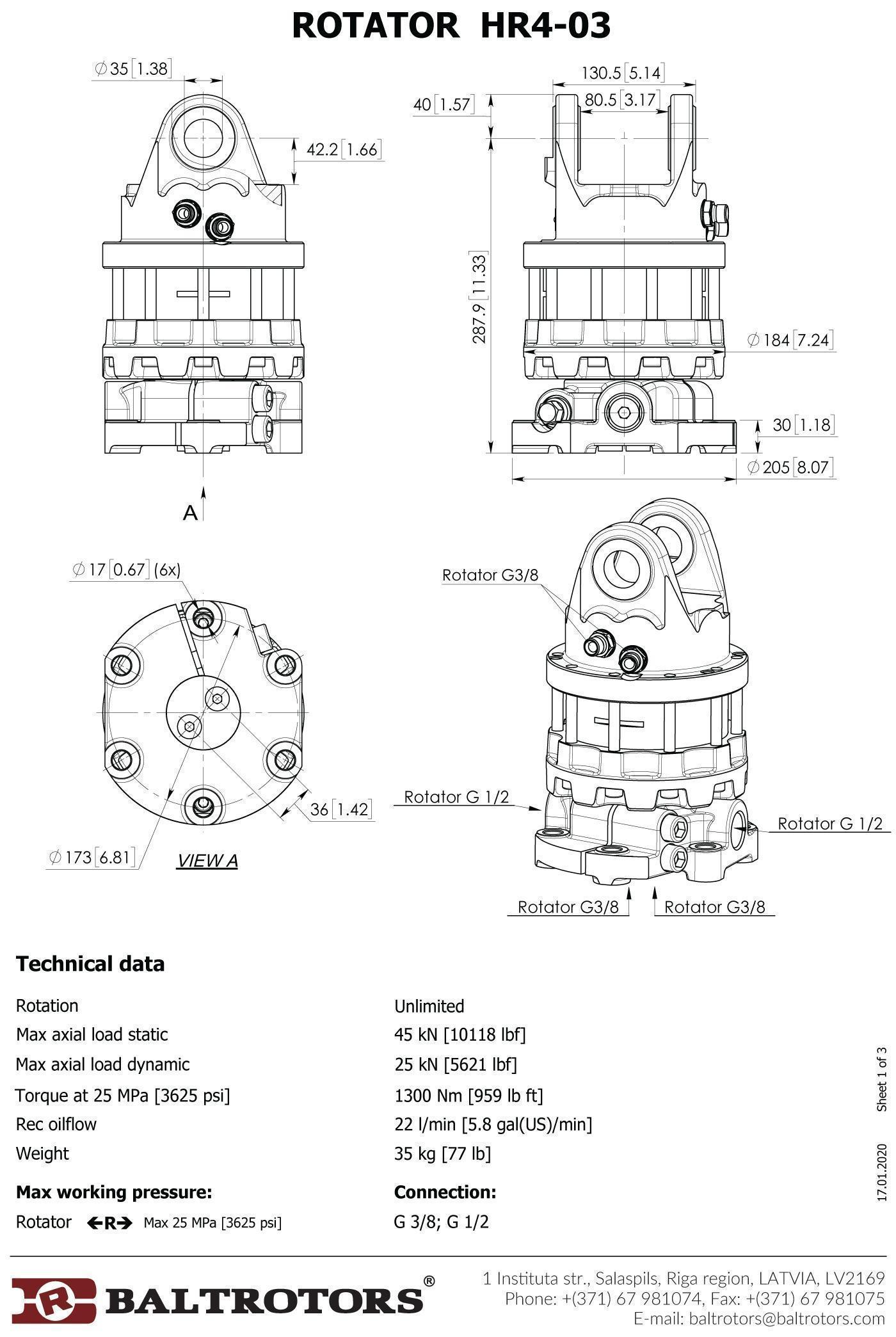

Dimensions
Compatible products
Rotation | Unlimited | |
Max. axial load static | 45 kN (10118 lbf) | |
Max. axial load dynamic | 25 kN (5621 lbf) | |
Torque | 1300 Nm (959 lb ft) | |
Rec. oilflow | 22 l/min | |
Weight | 35 kg | |
Upper connection L | 80.5 mm (3.17 in) | |
Upper connection D | 35 mm (1.38 in) | |
Lower Axle d & hole D | ||
Lower Flange d x pos & bolt hole D | ||
Warranty | 1 year |
