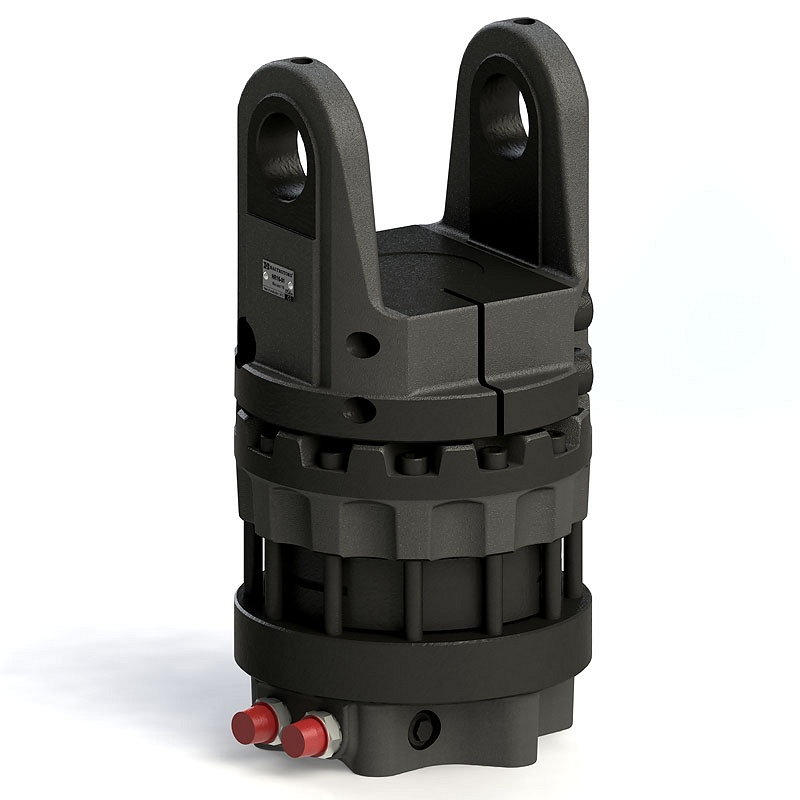

HR16-02
HR16-02
Description
A durable Double Bearing solution for compressive loads, specially designed for the harvester heads.
Upper connection - FORK form factor of the knuckle joint.
Lower connection - FLANGE form factor, to be mounted on the harvester head.

Technical specification

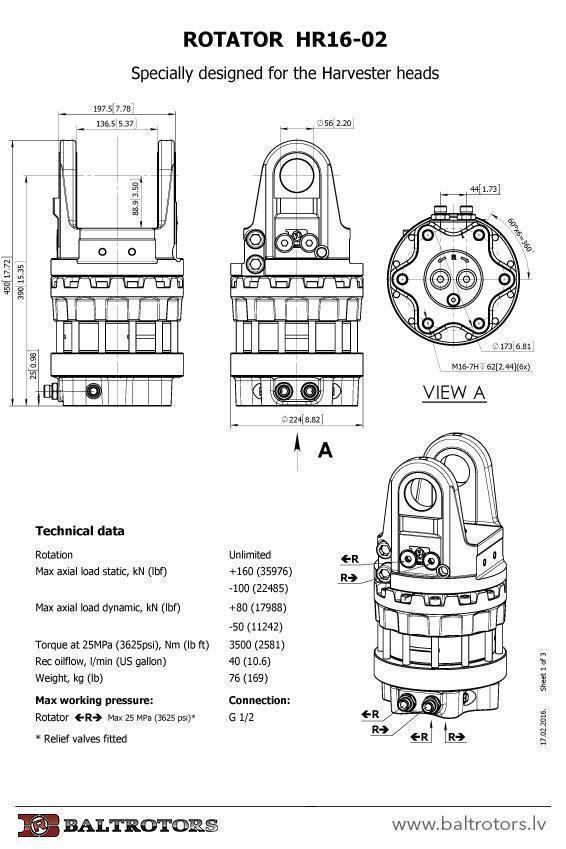

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | +160 -100 kN (+35976 -22485 lbf) |
|
Max. axial load dynamic | +80 -50 kN (+17988 -11242 lbf) |
|
Torque | 3500 Nm (2581 lb ft) |
|
Rec. oilflow | 40 l/min |
|
Weight | 76 kg |
|
Upper connection L | 136.5 mm (5.37 in) |
|
Upper connection D | 56 mm (2.20 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 1 year |
