HR12SM
HR12SM
Description

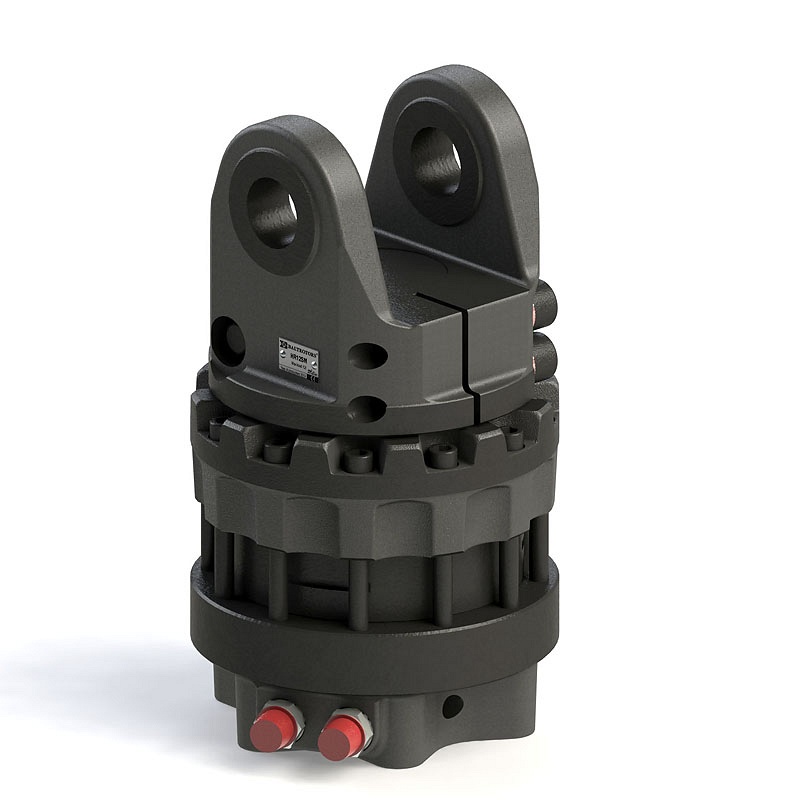

A durable Double Bearing solution for compressive loads, specially designed for the harvester heads.
Upper connection - FORK form factor of the knuckle joint.
Lower connection - FLANGE form factor, to be mounted on the harvester head.

Technical specification

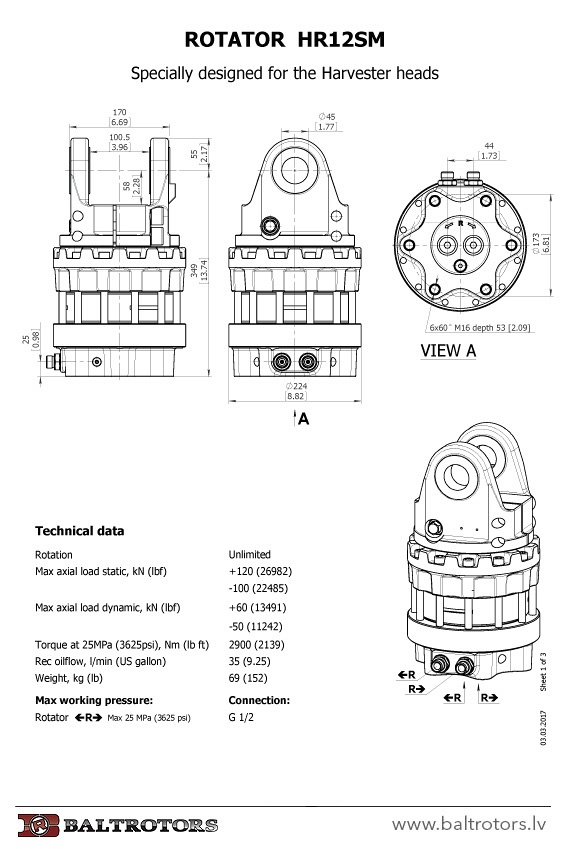

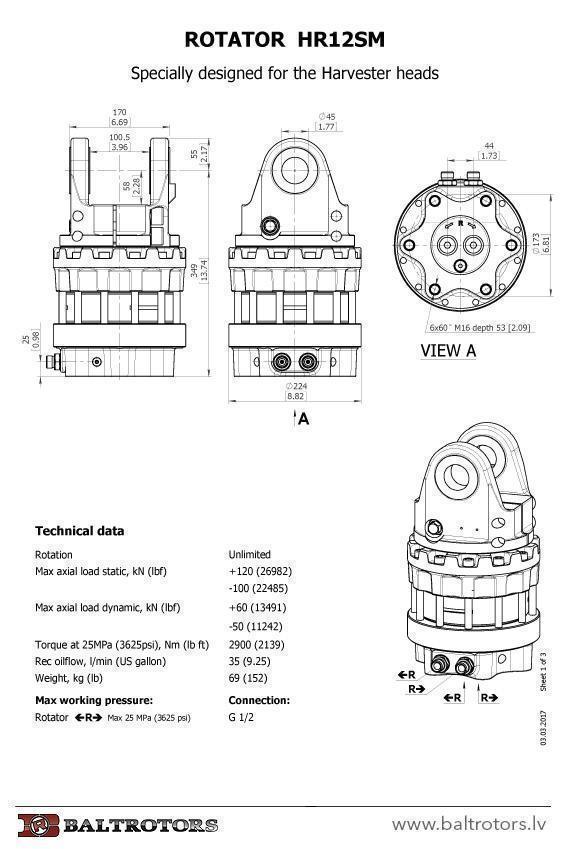

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | +120 -100 kN (+26982 -22485 lbf) |
|
Max. axial load dynamic | +60 -50 kN (+13491 -11242 lbf) |
|
Torque | 2900 Nm (2139 lb ft) |
|
Rec. oilflow | 35 l/min |
|
Weight | 69 kg |
|
Upper connection L | 100.5 mm (3.96 in) |
|
Upper connection D | 45 mm (1.77 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 1 year |
