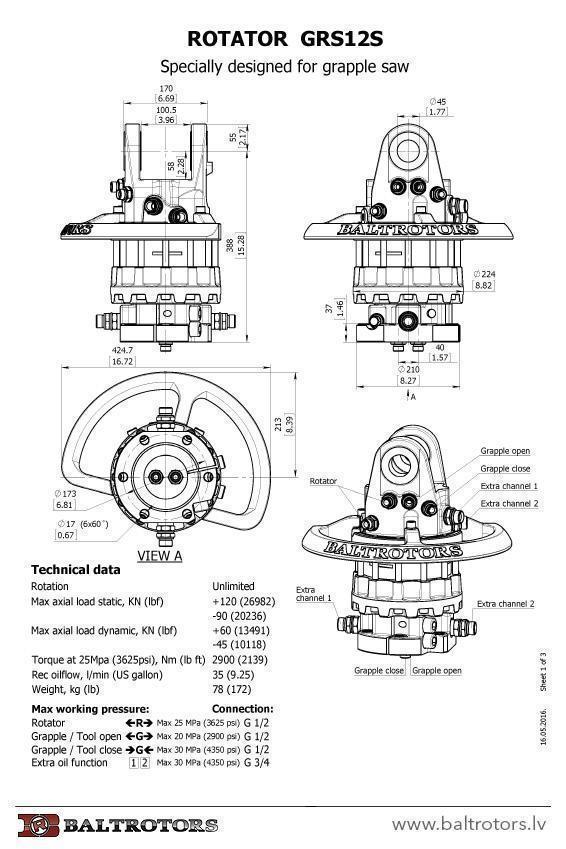

Technical specification
Compatible products
Rotation Unlimited
Max. axial load static +120 -90 kN (+26982 -20236 lbf)
Max. axial load dynamic +60 -45 kN (+13491 -10118 lbf)
Torque 2900 Nm (2139 lb ft)
Rec. oilflow 35 l/min
Weight 78 kg
Upper connection L 100.5 mm (3.96 in)
Upper connection D 45 mm (1.77 in)
Lower Axle d & hole D
Lower Flange d x pos & bolt hole D
Warranty 2 years
