GRS10-01
GRS10-01
Description

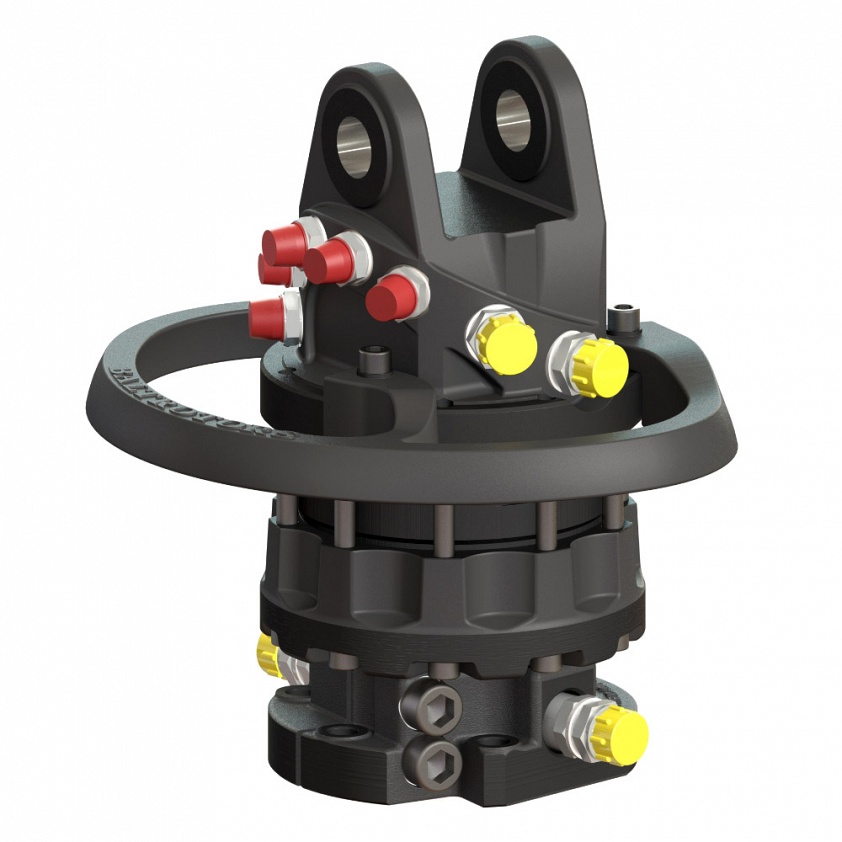

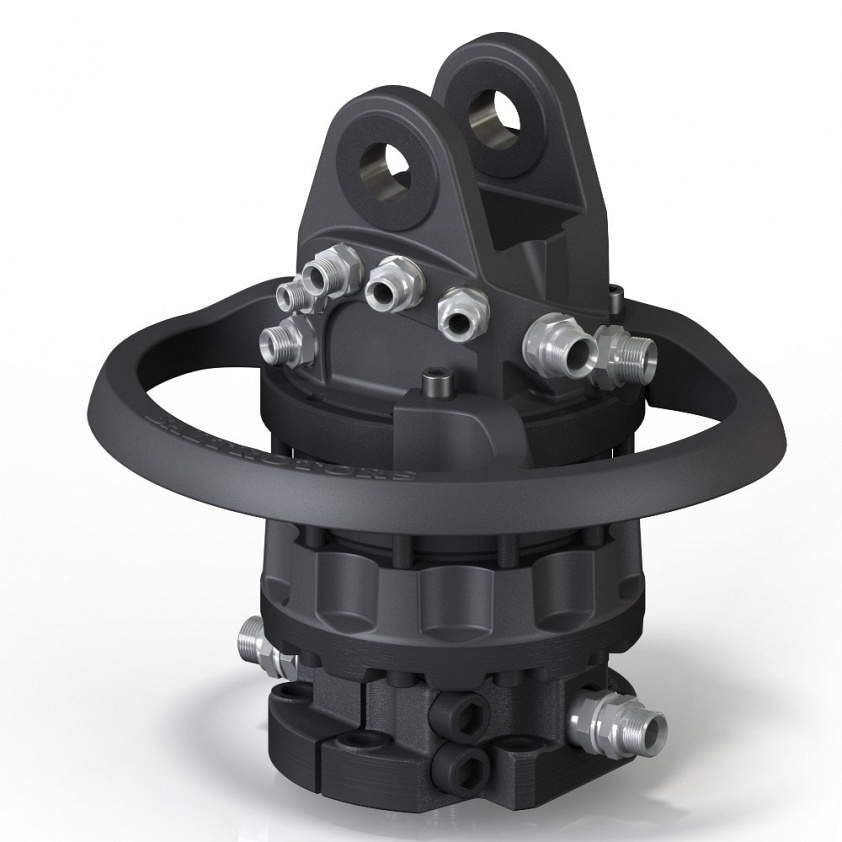

GRS stands for Grapple Rotator for Saw, solution with extra channels and Drain channel D.
Upper connection - FORK form factor of the knuckle joint
Lower connection - FLANGE (to be mounted on the grapple)
Technical specification

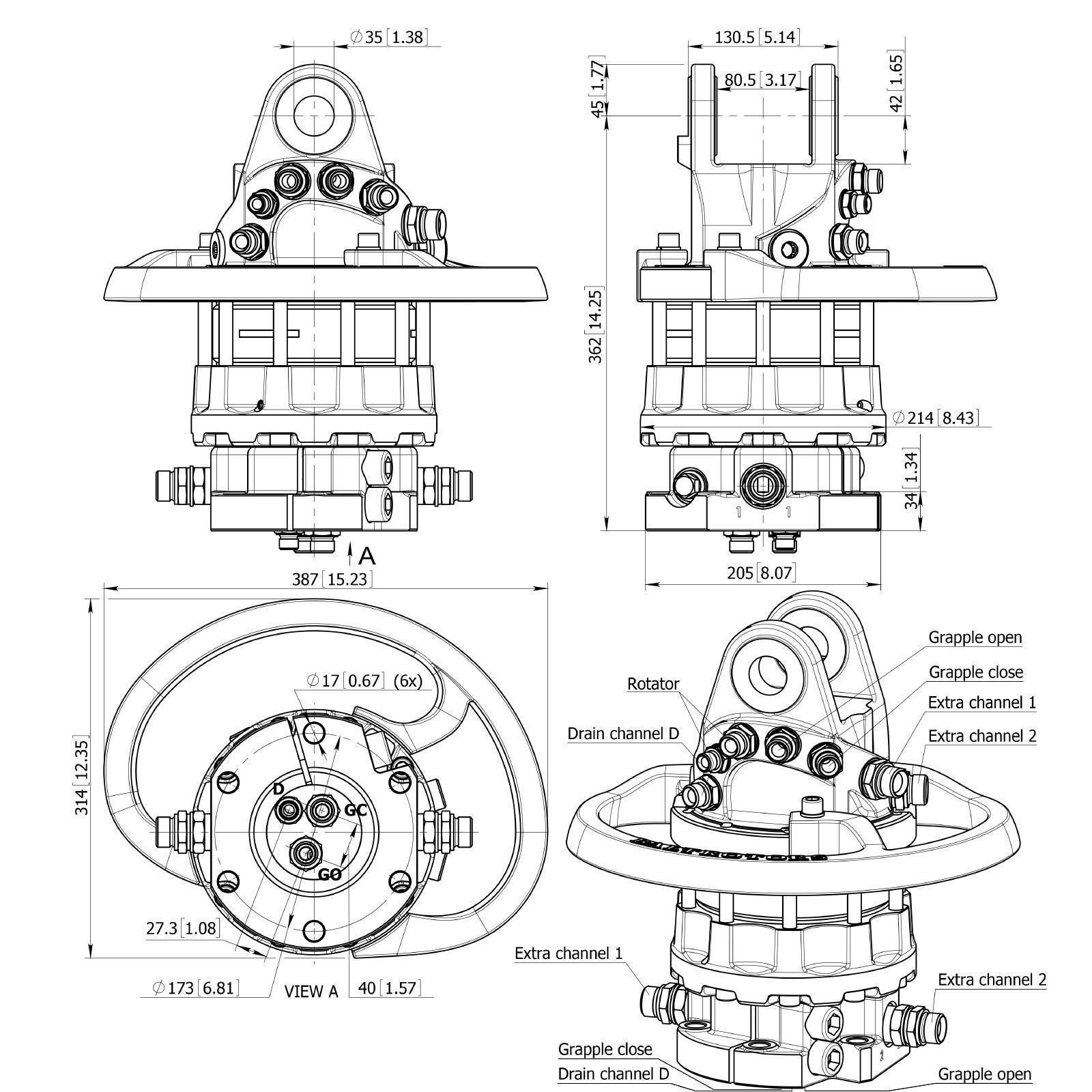

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | +100 -80 kN (+22485 -17985 lbf) |
|
Max. axial load dynamic | +50 -40 kN (+11242 -8992 lbf) |
|
Torque | 2500 Nm (1844 lb ft) |
|
Rec. oilflow | 25 l/min |
|
Weight | 63 kg |
|
Upper connection L | 80.5 mm (3.17 in) |
|
Upper connection D | 35 mm (1.38 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
