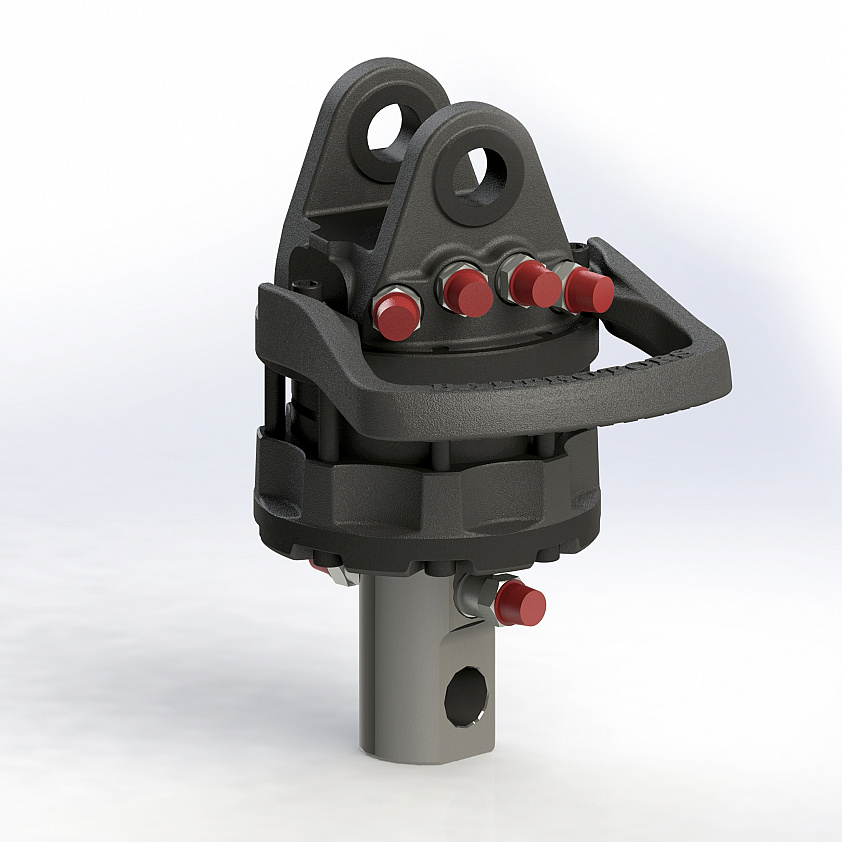

GR60/78
-baltrotors-grapple-rotator.jpg&width=842)
GR60/78
Description
A durable solution suitable for professional use in Forestry, Transport, Recycling industries.
Upper connection - FORK form factor of the knuckle joint.
Lower connection - AXLE form factor, to be built in grapple/tool.
Technical specification

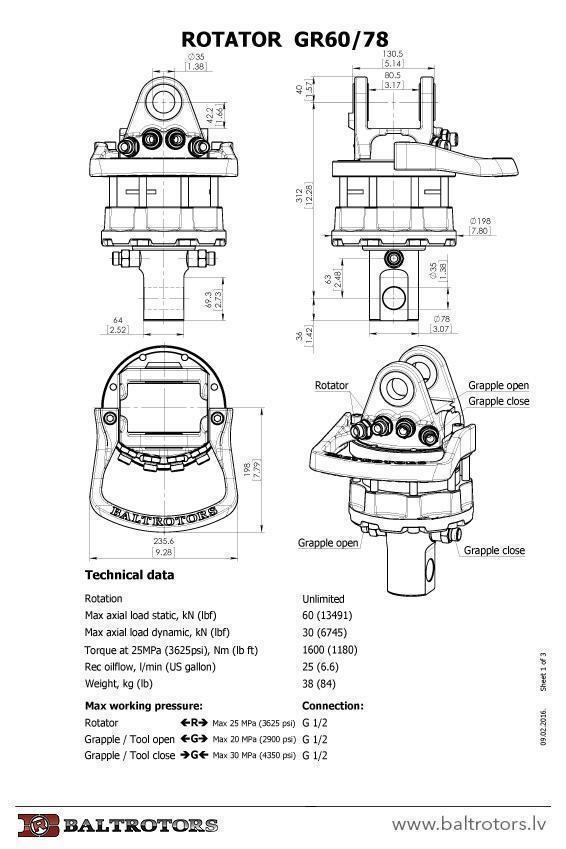

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 60 kN (13491 lbf) |
|
Max. axial load dynamic | 30 kN (6745 lbf) |
|
Torque | 1800 Nm (1328 lb ft) |
|
Rec. oilflow | 25 l/min |
|
Weight | 38 kg |
|
Upper connection L | 80.5 mm (3.17 in) |
|
Upper connection D | 35 mm (1.38 in) |
|
Lower Axle d & hole D | d78x64 D35 mm (d3.07x2.52 D1.38 in) |
|
Lower Flange d x pos & bolt hole D | - (-) |
|
Warranty | 2 years |
