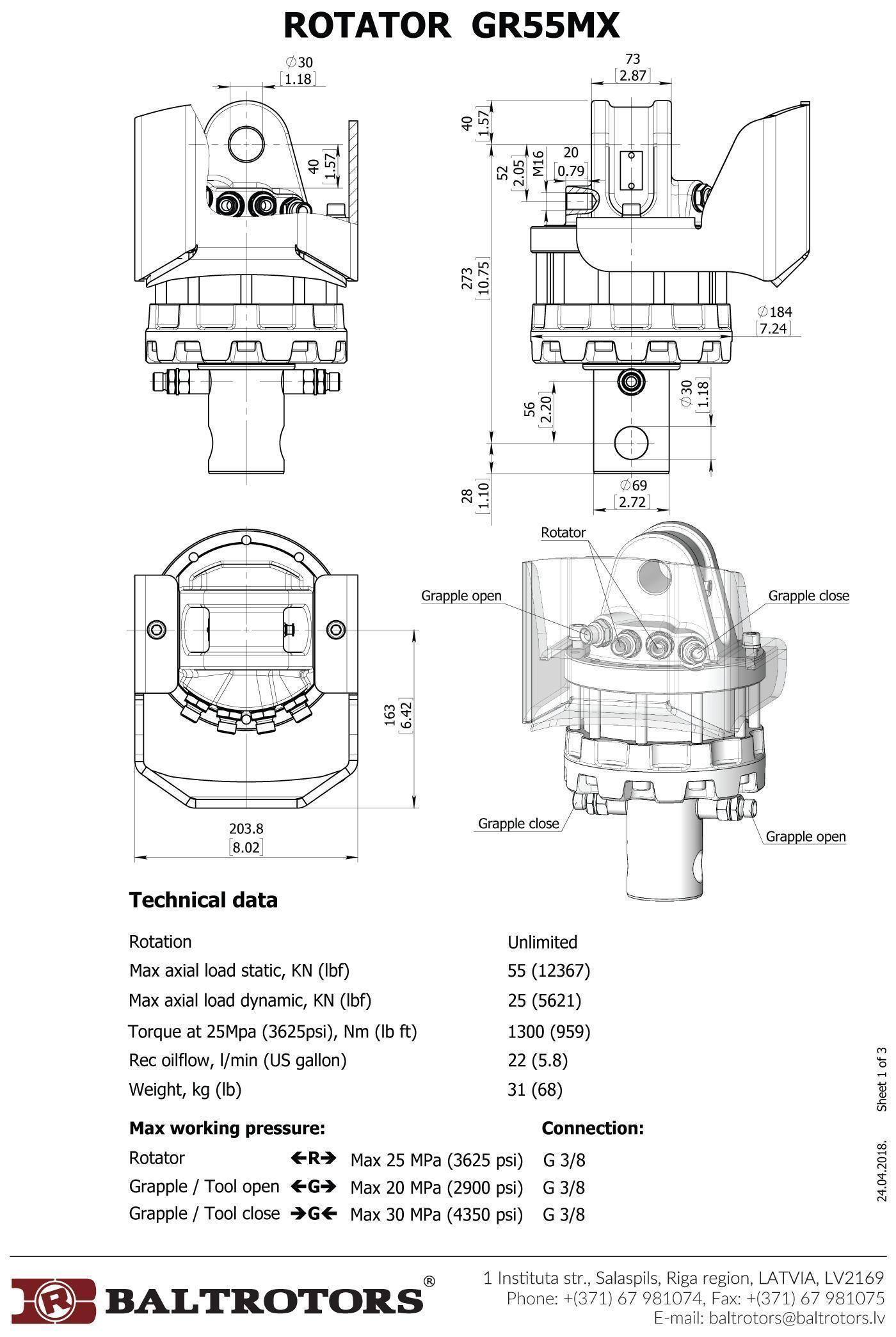

Technical specification
Compatible products
Rotation Unlimited
Max. axial load static 55 kN (12367 lbf)
Max. axial load dynamic 25 kN (5621 lbf)
Torque 1300 Nm (959 lb ft)
Rec. oilflow 22 l/min
Weight 31 kg
Upper connection L 73 mm (2.87 in)
Upper connection D 30 mm (1.18 in)
Lower Axle d & hole D
Lower Flange d x pos & bolt hole D
Warranty 2 years
