GR55-01
GR55-01
Description
Lightweight cost-effective solution suitable for ATV (All Terrain, small agricultural and forestry Vehicles).
Knuckle joint form factor:
Upper connection - EYE
Lower connection - AXLE, to be built in grapple.

Technical specification

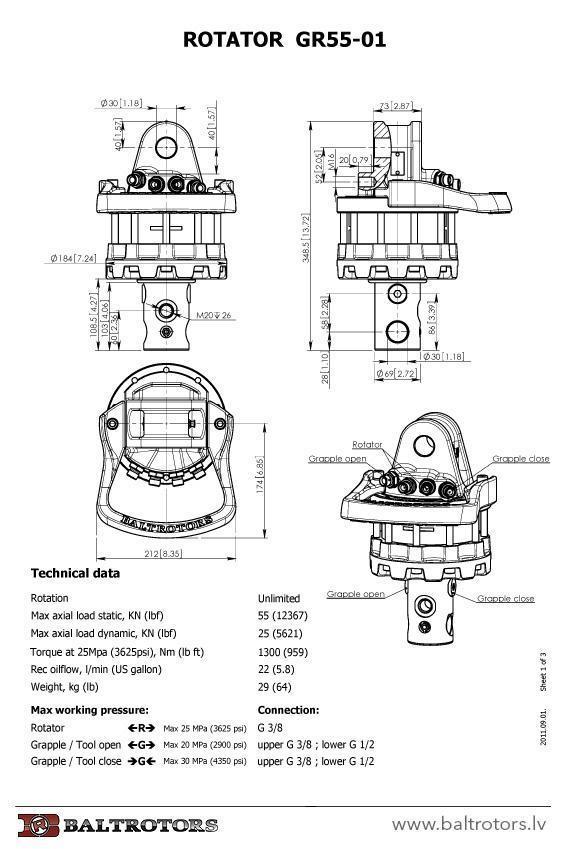

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 55 kN (12367 lbf) |
|
Max. axial load dynamic | 25 kN (5621 lbf) |
|
Torque | 1300 Nm (959 lb ft) |
|
Rec. oilflow | 22 l/min |
|
Weight | 29 kg |
|
Upper connection L | 73 mm (2.87 in) |
|
Upper connection D | 30 mm (1.18 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
