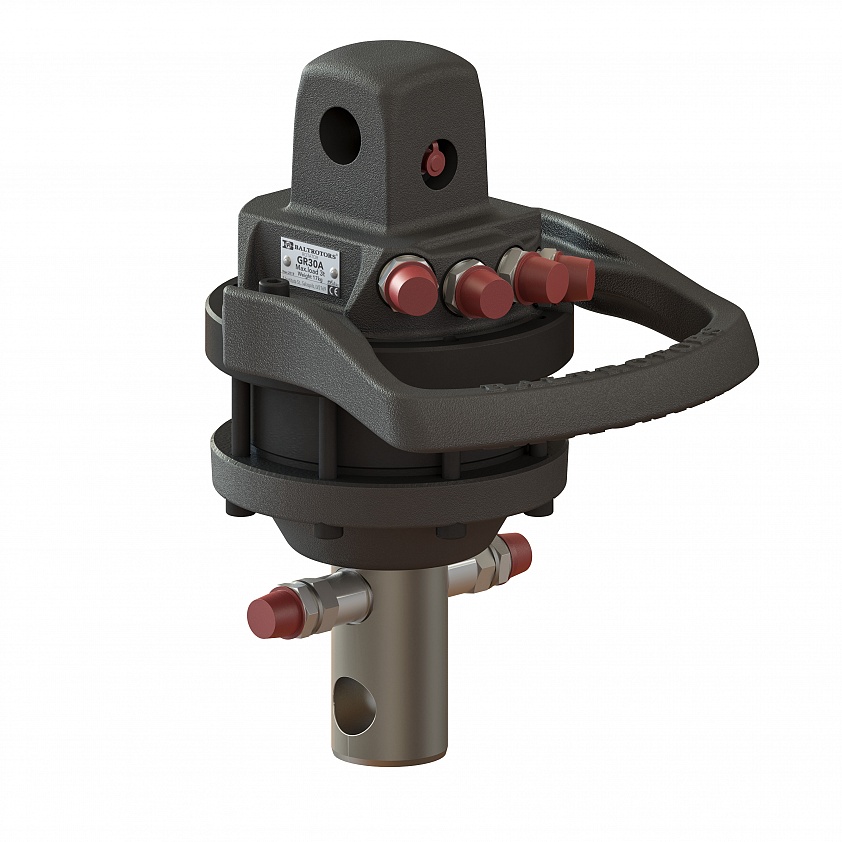

GR30A
GR30A
Description
Modification of GR30 rotator with “square” shape upper connection. Pin hole of the upper connection is directed perpendicularly to the hose guard.
Upper connection - EYE form factor of the knuckle joint.
Lower connection - AXLE form factor, to be built in grapple/tool.

Technical specification
Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 30 kN (6745 lbf) |
|
Max. axial load dynamic | 15 kN (3372 lbf) |
|
Torque | 1000 Nm (738 lb ft) |
|
Rec. oilflow | 20 l/min (5.3 US gallon) |
|
Weight | 17 kg (37 lb) |
|
Upper connection L | 60 mm (2.34 in) |
|
Upper connection D | 25 mm (0.98 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
