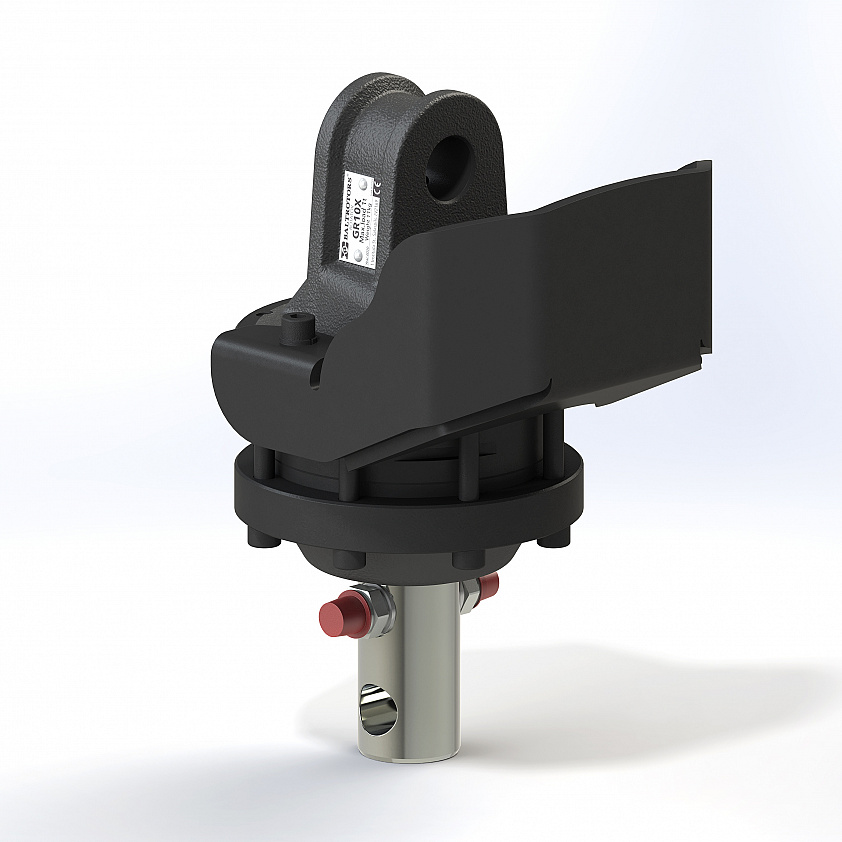

GR10X
GR10X
Description
Modification of GR10 rotator, equipped with extra-durable arched hose guard for even better protection of hoses.
Upper connection - EYE form factor of the knuckle joint.
Lower connection - AXLE form factor to be built in grapple/tool.
Technical specification
Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 10 kN (2250 lbf) |
|
Max. axial load dynamic | 5 kN (1125 lbf) |
|
Torque | 450 Nm (332 lb ft) |
|
Rec. oilflow | 10 l/min (2.6 US gallon) |
|
Weight | 11 kg (24 lb) |
|
Upper connection L | 45 mm (1.77 in) |
|
Upper connection D | 25 mm (0.98 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
