GR104DBX
GR104DBX
Description

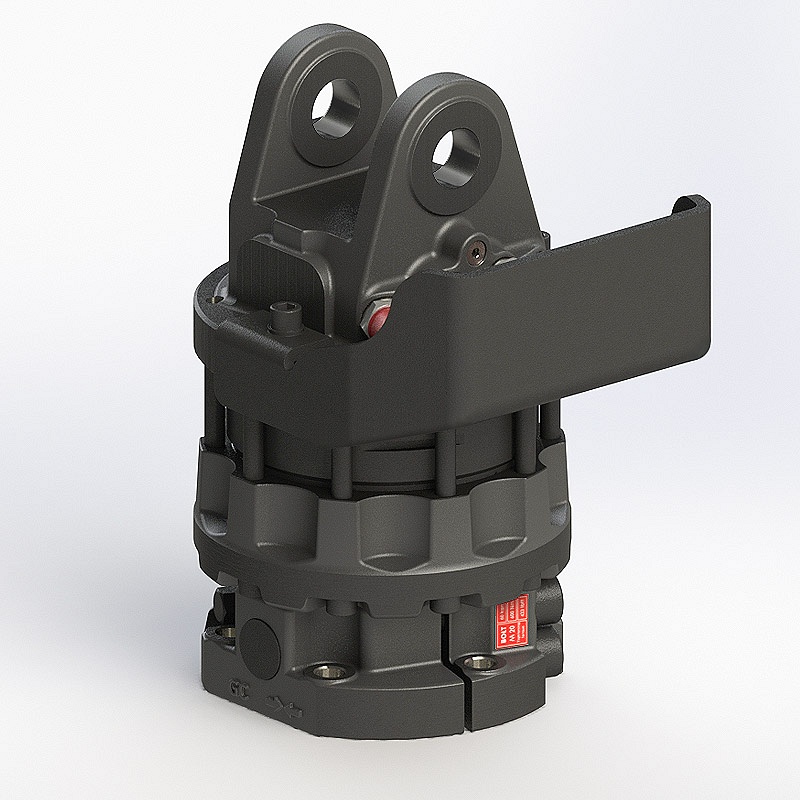

Modification of GR104DB rotator, equipped with extra-durable arched hose guard for even better protection of hoses.
Upper connection - FORK form factor of the knuckle joint.
Lower connection - FLANGE form factor, to be mounted on the grapple/tool.
Technical specification

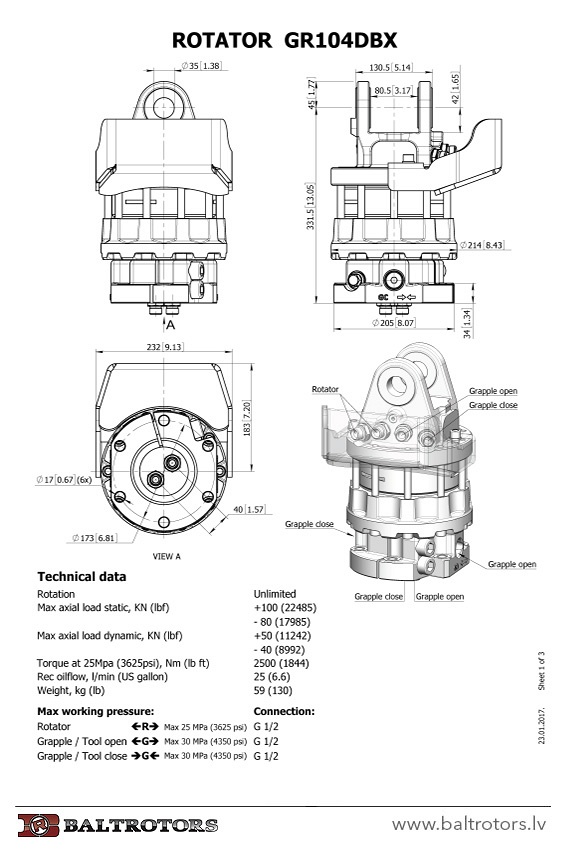

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | +100 -80 kN (+22485 -17985 lbf) |
|
Max. axial load dynamic | +50 -40 kN (+11242 -8992 lbf) |
|
Torque | 2500 Nm (1844 lb ft) |
|
Rec. oilflow | 25 l/min |
|
Weight | 59 kg |
|
Upper connection L | 80.5 mm (3.17 in) |
|
Upper connection D | 35 mm (1.38 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 2 years |
