GPR10
GPR10
Description

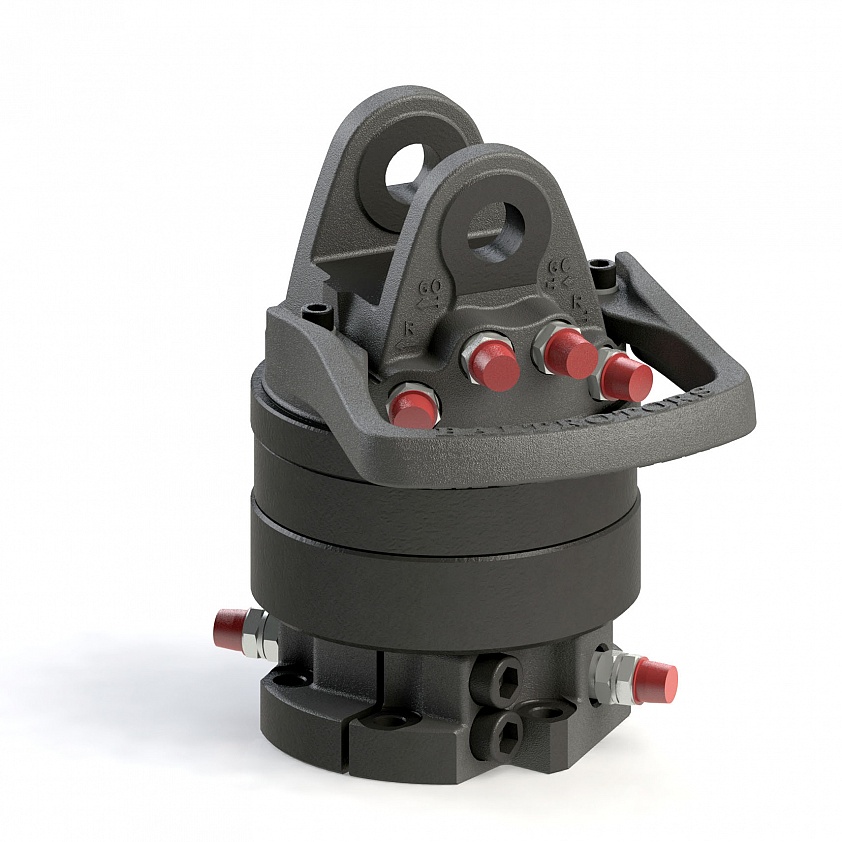

Radial piston type rotator, designed to increase productivity while rotating the load with exact stop.
Upper connection - FORK form factor of the knuckle joint
Lower connection - FLANGE form factor, to be mounted on the grapple/tool.

Technical specification

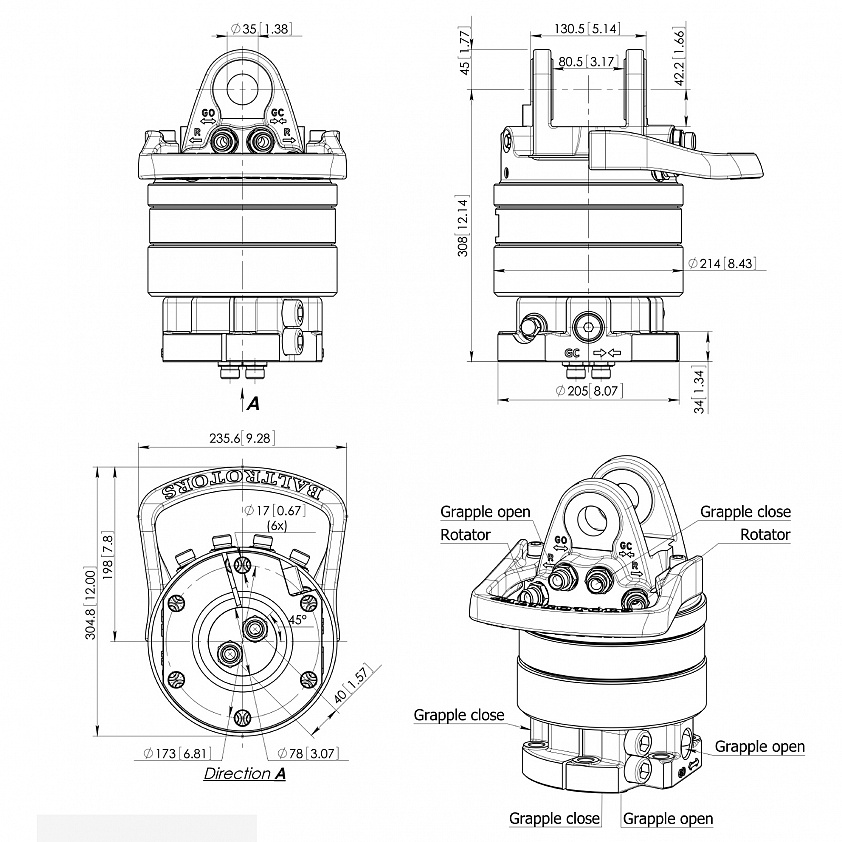

Dimensions
Compatible products
|
Rotation | Unlimited |
|
Max. axial load static | 100 kN (22485 lbf) |
|
Max. axial load dynamic | 50 kN (11242 lbf) |
|
Torque | 1950 Nm (1438 lb ft) |
|
Rec. oilflow | 22 l/min |
|
Weight | 59 kg |
|
Upper connection L | 80.5 mm (3.17 in) |
|
Upper connection D | 35 mm (1.38 in) |
|
Lower Axle d & hole D | |
|
Lower Flange d x pos & bolt hole D | |
|
Warranty | 1 year |
